30A Single Phase EMI Filter for Industrial EMC Applications

The DOREXS 30A Single Phase EMI Filter is designed for suppressing conducted electromagnetic interference on single-phase AC power lines in industrial equipment, control cabinets, servo systems, switching power supplies and other high-current electronic equipment.
Designed for 30A, 250VAC single-phase power systems, the filter attenuates common-mode and differential-mode noise before it propagates through the AC mains, helping equipment improve EMC performance and maintain stable operation in electrically noisy environments.
✔Rated Current: 30A
✔Rated Voltage: Up to 250VAC
✔Frequency: 50/60Hz
✔Single-phase AC power line filtering
✔Common-mode and differential-mode EMI suppression
✔Single-stage and multi-stage configurations available
✔Low-leakage-current configurations available
✔Chassis and DIN rail mounting options
✔Screw terminal and other connection options
✔Metal enclosure for industrial installation
✔OEM / ODM and custom EMI filter support
✔Application-specific EMC engineering support
Quantity :
Contact Now


Available 30A Single Phase EMI Filter Models

DOREXS currently provides two main product series suitable for 30A single phase applications.

These products are not electrically identical. DBA4 is intended for general-purpose power-line filtering, while DEA5 uses a two-stage circuit for applications requiring stronger conducted-noise suppression.

Series

Current Range

Filter Type

Connection / Installation

Recommended Use

DBA410–30AGeneral-purpose power line EMI filterInsert / Bolt / ChassisIndustrial equipment and standard power-entry filtering
DEA520–30AHigh-performance two-stage EMI filterBolt / Insert / WireIndustrial power electronics and more demanding EMC application


Which 30A EMI Filter Should I Choose?

Choose DBA4 when:

  • A general-purpose 30A EMI filter is required

  • The equipment uses single phase AC power

  • Chassis mounting is suitable

  • Insert or bolt connections are preferred

  • Standard conducted EMI suppression is sufficient

  • Compact installation is important

Choose DEA5 when:

  • Stronger conducted-noise suppression is required

  • A two-stage filter structure is preferred

  • The equipment contains high-frequency switching power electronics

  • EMC test margin is limited

  • A standard filter has not provided sufficient attenuation

  • Bolt, insert or wire connections are required

Not sure which filter is suitable?

Send DOREXS:

Input Voltage + Maximum Current + Equipment Type + EMC Test Curve + Failed Frequency Range + Installation Method + Leakage-Current Requirement

for engineering evaluation.

30A EMI Filter Technical Overview

Detailed electrical and mechanical specifications vary between DBA4 and DEA5.

Parameter

Typical / Available Specification

Product Category30A Single Phase EMI Filter
Rated Current30A
Power SystemSingle Phase AC
Rated Voltage115/250VAC
Maximum Operating VoltageUp to 275VAC depending on series
Frequency50/60Hz
Noise SuppressionCommon Mode + Differential Mode
Filter ArchitectureGeneral Purpose / Two Stage
Leakage CurrentStandard / Low-Leakage Configurations
MountingChassis / Panel
ConnectionInsert / Bolt / Wire
Operating TemperatureTypically -25°C to +85°C depending on model
HousingMetal enclosure
CustomizationElectrical parameters, terminals, wiring, housing and attenuation

Use the datasheet of the selected DBA4 or DEA5 model for final electrical and mechanical design.

Product Pictures

Detail Picture

DBA4 single phase EMI filterDEA5 single phase emi filter

DBA4

DEA5




Overall Dimension(±1mm)

DBA4 Overall Dimension
DEA5 Overall Dimension
DBA4DEA5

Circuit Diagram

DBA4 Circuit Diagram
DEA5 Circuit Diagram

DBA4

DEA5

Ideal Applications

30A EMI Filter for Industrial Automation Equipment

Servo Drive EMI Filter

Servo drives generate high-frequency switching signals that can interfere with encoder feedback and motion control systems. A 30A servo drive electromagnetic interference filter helps reduce conducted noise and improve positioning accuracy.
Typical Applications: CNC machine tools, machine motion control systems, industrial automation equipment.

VFD Electromagnetic Interference Filter

VFDs are one of the most common sources of conducted electromagnetic interference in industrial environments.
Our 30A VFD electromagnetic interference filter helps to: reduce power line interference, improve electromagnetic compatibility, protect nearby electronic equipment, and minimize communication interference.


Industrial Automation Equipment EMI Filter

Industrial automation systems typically integrate multiple electronic subsystems within a single control cabinet.
A 30A AC EMI filter helps reduce conducted radiation generated by the following devices, thus maintaining stable system operation: PLC controllers, HMI systems, sensors, power supplies, industrial Ethernet.

EMI Filter for Servo Drive Systems

EMI Filter for Variable Frequency Drives

Electric vehicle charging system EMI filter

Electric vehicle chargers contain high-power switching circuitry that generates significant EMI.
Our 30A power line EMI filter helps to: improve EMC performance, reduce conducted emissions, protect communication circuits, and improve charging reliability.

Renewable energy system EMI filter

Suitable for: Solar inverters, energy storage systems, power conversion equipment, and smart grid applications.

Medical Device EMI Filter


Medical devices require low-noise operation and stringent EMC compliance.
The DOREXS 30A EMI filter features a low leakage current design and is suitable for: Diagnostic equipment, laboratory instruments, medical power systems, and medical electronic equipment.
Applications in Medical Equipment and Electronic Devices
If you need to suppress electromagnetic interference on a 30A single phase line - whether for single phase motor drives, control cabinets, or sensitive medical equipment - the DOREXS fits your requirements. EMI filters are used in power supplies to reduce conducted emissions, and this filter is suitable for any application where high frequency noise threatens system functioning.

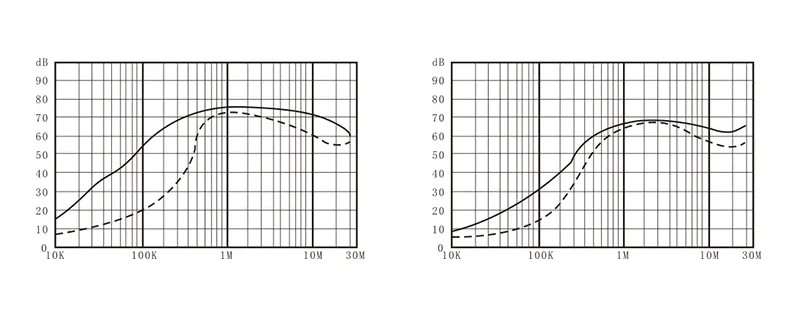

SINGLE PHASE EMI FILTER Insertion Loss Performance



Insertion Loss Performance

The DOREXS 30A single phase EMI filter is engineered to provide stable insertion loss performance against both:
  1. Common Mode Noise Reduction-Helps suppress interference transmitted between line conductors and ground.
  2. Differential Mode Noise Reduction-Reduces noise generated directly across power conductors.

Mechanical Design

This filter supports compact panel integration for industrial systems.
Installation recommendations:
  • Install close to power entry points
  • Minimize cable loop area
  • Separate input and output wiring
  • Ensure proper grounding connection
  • Avoid parallel routing of noisy cables
Correct installation significantly improves EMC suppression performance.

Certifications & Compliance

DOREXS EMI filters are manufactured under rigorous quality control processes to meet international EMC standards.
Compliance support provided includes:
  • UL compliance
  • CE compliance
  • RoHS compliance
  • EMC testing support
  • ISO 9001 certification
  • Industrial quality management
  • OEM documentation support

DOREXS single phase emi filter certifications


Custom EMI Filter Solutions

As a professional EMI filter manufacturer, DOREXS provides OEM and ODM EMI filter solutions tailored to specific EMC requirements.
Customization options include:
  1. Current Rating Adjustment
  2. Low Leakage Current Design
  3. Terminal Configuration
  4. Mounting Structure
  5. Enhanced Attenuation Performance
  6. Medical Grade Design
  7. High Reliability Industrial Design
Our engineering team can assist with EMC troubleshooting, filter selection, and custom filter development for demanding industrial applications.

Why Choose DOREXS?

Professional EMI Filter Manufacturer
Over a decade of experience in EMI and EMC suppression technologies.
Comprehensive Product Range

Custom Design Support

OEM and ODM projects supported according to customer specifications.

Quality Assurance

Manufactured under strict quality management processes with international compliance standards.

Global Customer Support

Technical assistance available for equipment manufacturers, system integrators, and industrial OEM customers worldwide.

Need Help Selecting a 30A EMI Filter?

If your equipment has already failed a conducted-emissions test, send us the test curve together with:

Operating Voltage + Maximum Current + Equipment Type + EMC Standard + Installation Space + Leakage Current Requirement

DOREXS engineers can evaluate the interference frequency and recommend a standard or customized EMI filter configuration.

Request a Quote / Ask an Engineer



FAQ

How do I know whether I need a 30A EMI filter?

Select the filter current according to the equipment's maximum continuous input current and appropriate design margin. The filter must also meet the system voltage, ambient-temperature, leakage-current and EMC requirements. Current rating alone is not sufficient for final selection.

Can a 30A single phase EMI filter be used on 230V or 250VAC systems?

Yes, a 250VAC-rated configuration can be evaluated for typical 220–240VAC single-phase systems, provided the selected model meets the actual voltage, current, temperature and safety requirements of the equipment.

What is the difference between common-mode and differential-mode EMI?

Common-mode noise appears between power conductors and ground, while differential-mode noise appears between line and neutral. EMI filters use different combinations of inductors and capacitors to attenuate these two noise modes.

Should I choose a single-stage or multi-stage filter?

A single-stage filter is often suitable for moderate conducted EMI where space and leakage current are important. Multi-stage filters can provide stronger broadband attenuation when the equipment has more severe conducted-emissions problems. Final selection should be based on the actual EMC test result whenever possible.

Where should the EMI filter be installed?

Install the filter close to the equipment AC power entry. Keep input and output wiring separated, maintain a short chassis-ground connection and avoid routing noisy cables alongside filtered wiring.

Can the 30A EMI filter be used with a VFD?

It may be suitable for certain single-phase input drive systems if the electrical ratings and EMC requirements match. For three-phase industrial VFD systems, a dedicated three-phase/VFD EMI filter is normally more appropriate.

Is a low-leakage 30A filter available?

Yes. DOREXS can evaluate low-leakage configurations when equipment safety requirements limit earth leakage current. The final capacitor configuration and attenuation performance should be reviewed together because reducing Y capacitance can affect common-mode attenuation.

Can DOREXS customize the dimensions or terminals?

Yes. Housing dimensions, mounting structure, terminal type and terminal orientation can be customized according to equipment installation requirements.

Can you provide insertion-loss curves and technical documentation?

Yes. Model-specific insertion-loss data, drawings, datasheets and available compliance documentation can be supplied according to the selected product configuration.

Can an EMI filter guarantee that my equipment will pass EMC testing?

No EMI filter alone can guarantee equipment-level compliance. Final EMC performance depends on the filter, grounding, shielding, PCB design, cable routing, enclosure construction and noise source. The finished equipment should be verified through applicable EMC testing.
