Model No: DAD2

DAD2 Power Line AC DC EMI filter,1A-10A,24-100VDC

Rated Voltage：24-100VDC

General Purpose DC EMI Filter

Small size, strong filtering effect

Specifically designed to suppress DC power supply noise

Can be customize according to customer requirements.

Support free samples

Delivery :

FOB

minimum order :

500 pieces

Supply Ability :

10000pieces / Day

Stock Time :

3-7Day

Country of Origin :

China

Quantity :

Contact Now

TheDAD2 DC EMI filter is a device designed to reduce or eliminate electromagnetic interference (EMI) in alternating current (AC) and direct current (DC) electrical systems. At DOREXS, you can choose from a wide range of standard AC DC EMI filters, and you can also customize them according to the particularities of your products. These filters can help you improve the stability and reliability of the overall system, and at the same time make your products comply with Safety regulations.

This series of 24V-100VDC DC power filters is ideal for space-constrained applications such as LED drivers, communication equipment, and industrial automation systems due to its compact design.

Key Features

Rated current up to 10A
Multiple connection options such as power cords and plug-ins
Low leakage current
Low pass filter design
AC DC EMI filters perform dual functions
Customized versions with appearance and parameters available on request

Technical Specifications

Specification

Details

Model：

DAD2

Application：

Industrial / Commercial

Phase：

Structure：

Single-stage

Max operating voltage：

24-100VDC

Rated Current：

1A - 10A

Leakage Current：

≤ 0.5mA

Withstand voltage level：

200VDC

Frequency Range：

Operating Temperature：

-25°C ~ +85°C

Certifications：

UL, CQC, CE

Dimensions (mm)：

68 × 33 × 29 (W×H×D)

Weight(g)：

Connection Type：

Bolt/Insert/Power cord

Product Pictures

Detail Picture

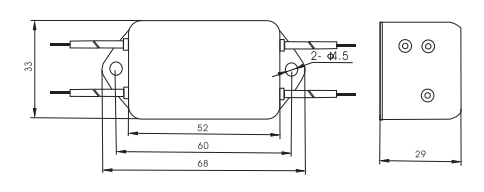

Overall Dimension（±1mm)

Designed for easy PCB integration, the DAD2 DC EMI filter features a standard PIN pin configuration, compatible with most DC power supply layouts. Its compact size minimizes the impact on board space.

Circuit Diagram

Customization Options

Cable length and interface type can be customized according to customer needs. DOREXS can also customize EMI filter parameters and appearance dimensions according to customer equipment requirements. At DOREXS, everything is based on customer requirements and we are committed to creating exclusive EMI solutions for customers.

Approvals and Compliances

DAD2 EMI filter Filter application:

Industrial automation equipment
robot
power converter
server
Internet equipment
computer
medical equipment
Consumer electronics products
train control system
Ship power system

DOREXS offers more AC DC EMI filter options, please contact us.

FAQ

1. Who are we?

DOREXS was founded in 2008 and is a manufacturer focusing on EMI solutions and power quality solutions with rich industry experience. Professional R&D technical team and advanced production equipment support us to provide cost-effective products and solutions.

2. How do we ensure product quality?

Our filter products have UL, CE, ISO9001 and ROHS certifications, and each product will be subject to final inspection before leaving the factory.

3. Do we support customization?

DOREXS not only provides standard products, but also supports product appearance customization and product parameter customization. We provide cost-effective EMI solutions and power quality solutions.

4. What services can we provide?

Delivery terms: FOB, CFR, CIF, EXW, FCA
Payment currency: USD, EUR, RMB
Payment method: T/T, L/C, MoneyGram, Western Union, Cash

5. What products can I buy from you?

EMI/EMC filters, transformers, reactors, insulated wires and power sockets, etc.
