DBI6 IEC Socket EMI Filter

Key Features

• Rated current up to 10A
• Integrated socket link at the front end, optional power cord and welding lug at the output end
• Optional low leakage current version
• Integrated fuse holder for convenient fuse replacement and circuit protection
• Having a spare fuse in the fuse holder saves time during maintenance
• Can be used in power entry modules or as part of modular systems
• Easy to install for various electronic applications
• Helps protect sensitive electronics from the problem of electromagnetic interference (EMI)
• Directs unwanted noise to ground for enhanced safety
• Blocks EMI transmitted through conductors such as wires and power lines
• Compatible with a wide range of voltages and equipment
• Addresses different types of EMI, including conducted and radiated interference
• Additional certifications or documentation can be provided if needed or required by the customer
• Depending on the application, customized versions and features are available
• With fuse to enhance safety performance
• Customized versions of appearance and parameters can be provided on demand
• Comply with cUL, CE, ROHS, CQC related safety certifications

Technical Specifications



Specification	Details
Model：	DBI6
Application：	Commercial/Industrial/Consumer Appliances
Phase：	Single-phase
Structure：	Single-stage
Max operating voltage：	275VAC
Rated Current：	1A - 10A
Leakage Current：	≤ 0.5mA
Withstand voltage level：	1750VAC
Frequency Range：	50/60Hz
Operating Temperature：	-25°C ~ +85°C
Certifications：	UL, CQC, CE
Dimensions (mm)：	59 × 28 × 57.5 (W×H×D)
Weight(g)：	80
Connection Type：	Bolt/Insert/Power cord





Product Pictures

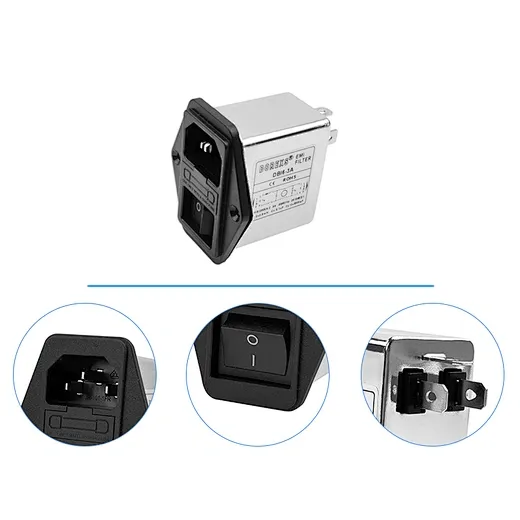

Detail Picture

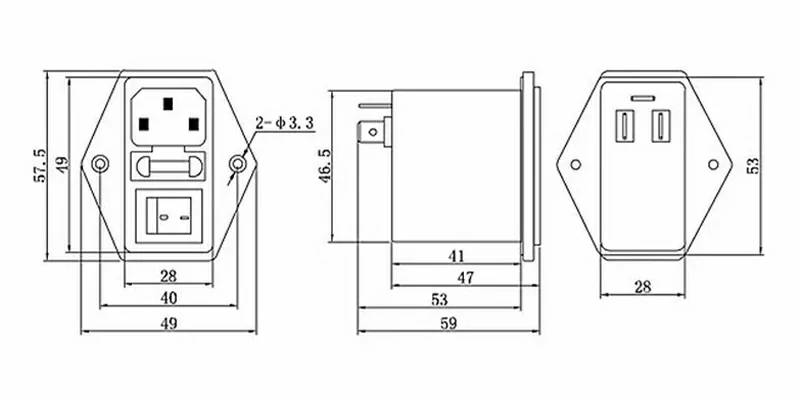

Overall Dimension（±1mm)







Circuit Diagram

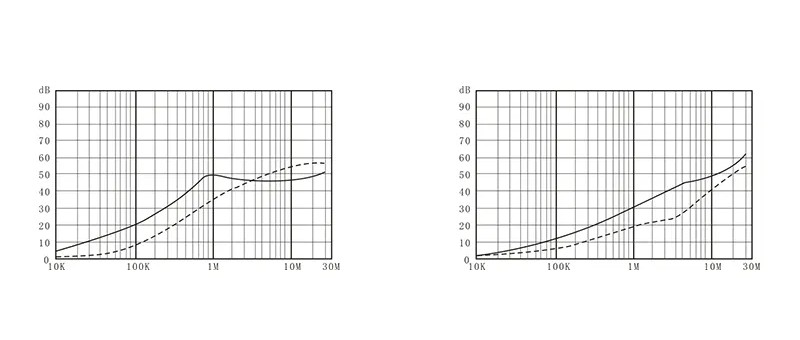

Insertion Loss

Customization Options

Cable length and interface type can be customized according to customer needs. Customers can choose the specifications that best fit their application, including different types of customizations such as voltage, current rating, and connector style.

DOREXS can also customize EMI filter parameters and appearance dimensions as needed or as required by customer equipment requirements. Custom filters can be made compatible with various voltage or equipment standards, and customization options vary depending on the customer's needs. We offer custom power entry modules and solutions, with special offers available upon request. Custom solutions are designed to protect sensitive equipment, and custom install options can be provided to meet specific installation requirements.
At DOREXS, everything is based on customer requirements and we are committed to creating exclusive EMI solutions for customers.

Approvals and Compliances

Our product is compatible with international safety standards and meets major compliance requirements. Additional certifications can be provided if needed or required by the customer, depending on the specific application or regional regulations. We also offer compliance documentation upon request.

Applications

• Computer
• Server
• Internet equipment
• Communication Systems
• Data transmission equipment
• Imaging system
• Mechanical and control systems
• Robotic equipment
• Kitchen Appliances
• Fitness equipment

Installation and Maintenance

Proper installation and maintenance of EMI filters (such as the DBI6 IEC inlet model) are crucial for protecting electronic equipment from electromagnetic interference and maintaining optimal performance.

When installing, choose a location close to interference sources and easily accessible for maintenance. Ensure device compatibility and compliance with industry standards (such as those for medical electronics). Grounding is crucial to effectively prevent additional interference. Some filters have built-in fuse holders for additional protection. Maintenance requires regular inspection for wear, damage, or performance degradation, and prompt replacement.



It is recommended to refer to the manufacturer's instructions and tutorial videos, and consult with DOREXS if necessary, to select the appropriate model. Proper installation and maintenance not only improves the device's interference immunity but also ensures long-term stable operation, meeting the demands of demanding applications.



DOREXS offers more IEC socket emi filter options, please contact us.

---
