Model No: DF2F

EMI Fan Filter: 3A, 6A, 10A, 20A Options

50/60Hz
380V/440V
Support customization

Quantity :

Contact Now

Electromagnetic interference (EMI) is a serious problem in devices with cooling fans. The result of increased use of developed electronic devices is higher EMI in modern environments. These fans are particularly important for maintaining proper temperatures, but they also become a significant source of electromagnetic noise that can affect the normal operation of surrounding electronic equipment/components. EMI can be generated in different types, including conducted and radiated EMI, depending on how the interference propagates. This is where EMI fan filters become very important, mitigating this electromagnetic interference to ensure the normal operation of the equipment. The use of EMI fan filters is essential in various industries, such as medical, military, and residential sectors, to reduce EMI and ensure device performance.
DOREXS’s DF2F EMI fan filter is designed to solve the above situation and can effectively suppress EMI in fans to make your products comply with electromagnetic compatibility (EMC) regulations. The effect of the filter includes reducing EMI/RFI noise and improving airflow quality. The filter may use an aluminum frame for lightweight construction and effective shielding. The frame is also important for ensuring full conductivity, proper gasket sealing, and optimal shielding performance.

Technical Parameters

	Rated Current:15A-50A	Rated Voltage:380VAC/440VAC
	Working Frequency:50/60HZ	Temperature Range:-25℃~85℃
	Fire Resistance：UL 94V-0	Parameter Customization

Standard configurations are available to meet common industry requirements.

Overall Dimension（±1mm)

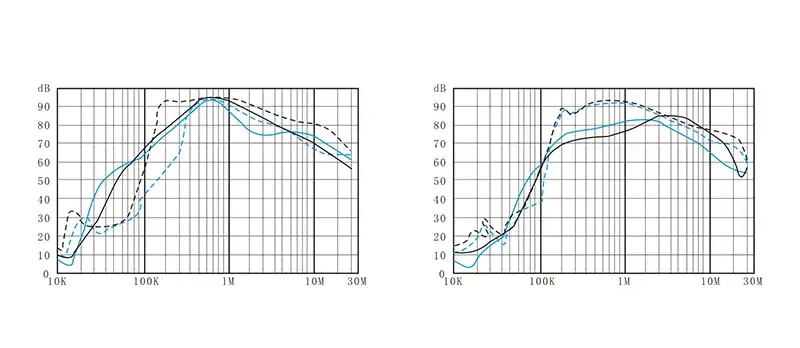

Insertion loss

Sources of EMI in fans

Fans mainly generate electromagnetic interference through their motors and the switching of currents within the equipment. These components can generate a wide range of electromagnetic noise, which may be radiated through the air (radiated EMI) or propagated along wires (conducted EMI). Interference can damage nearby electronic circuits, causing malfunctions, performance degradation, or even complete system failure.

Suppress EMI with EMI Fan Filters

EMI fan filters are expertly designed to suppress electromagnetic interference in fan systems, ensuring that electronics and equipment operate reliably. By utilizing advanced materials and innovative designs, these filters block unwanted EMI while still allowing maximum air flow, which is essential for cooling sensitive components. Whether used in industrial, medical, or military applications, EMI fan filters are available in a range of custom sizes to meet the specific needs of each project. This versatility allows them to be seamlessly integrated into various equipment, providing effective EMI suppression and helping to prevent problems such as noise, vibration, and heat buildup that can compromise electronic performance.

Benefits of Using EMI Fan Filters

Incorporating EMI fan filters into electronic systems offers a host of benefits. These filters provide robust shielding against electromagnetic interference, which helps to enhance the reliability and longevity of equipment. By minimizing EMI, they reduce the risk of device failure and lower maintenance costs, as there is less need for repairs or replacements due to heat or interference-related damage. The availability of custom sizes and designs means that EMI fan filters can be tailored to meet the exact requirements of any application, whether in industrial automation, medical devices, or other high-demand environments. This high level of protection and adaptability makes EMI fan filters an ideal solution for tackling EMI problems in a wide range of settings.

Role of EMI Fan Filters in Fan Systems

EMI fan filters serve a vital function in fan systems by acting as a barrier against electromagnetic interference. Typically installed at the air intake or exhaust points, these filters combine effective shielding with high-performance filtration to ensure that only clean, interference-free air enters the system. This dual action allows for maximum air flow, which is crucial for cooling, while also protecting sensitive electronics from EMI. Their role is especially important in applications such as electronics manufacturing, telecommunications, and data centers, where reliable operation and high shielding performance are essential. By providing this level of protection, EMI fan filters help maintain the integrity and efficiency of a wide range of electronic equipment.

Installation and Maintenance

Proper installation and regular maintenance are key to ensuring that EMI fan filters deliver optimal performance. Filters should be installed according to the manufacturer’s guidelines, with careful attention to sealing and securing the unit to prevent any gaps that could allow electromagnetic interference to bypass the filter. Routine maintenance, such as cleaning or replacing filters, helps prevent issues like clogging or corrosion, which can compromise both air flow and shielding effectiveness. For enhanced monitoring, custom features such as video or remote monitoring can be added, providing real-time information on filter status and performance. By following a consistent maintenance schedule and utilizing available custom options, users can ensure that their EMI fan filters continue to provide high-level protection against electromagnetic interference across a wide range of applications.

In summary, EMI fan filters are essential components in fan systems, providing important protection against electromagnetic interference. Their role in suppressing EMI not only improves system reliability and performance, but also ensures compliance with strict regulatory standards, making them an important consideration in the design and operation of electronic equipment.

If you are interested in purchasing, you can easily add the EMI fan filter item to your shopping cart or wish list for convenient checkout or to save for later.

DOREXS offers more power line noise filter options, please contact us.
