Model No: D

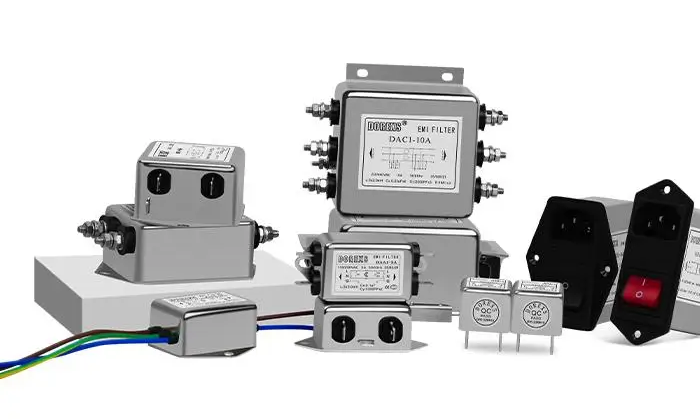

EMI Line Filter
The main function of EMI line filters in electronic devices is to suppress the electromagnetic interference generated and received by electronic devices to ensure the stable operation of the equipment.
Quantity :
Subscribe to our Newsletter
Electromagnetic interference (EMI) has become a critical issue that needs to be addressed. EMI may not only interfere with the normal operation of electronic devices, causing data errors and performance degradation, but may even cause equipment damage in severe cases. The main function of EMI line filters in electronic devices is to suppress the electromagnetic interference generated and received by electronic devices to ensure the stable operation of the equipment.
Learn more about selecting the right EMI line filter...
Specifically, it achieves this function in the following two ways:
Suppressing conducted interference: EMI line filters can effectively prevent the electromagnetic noise generated inside the device from being transmitted to the power grid or other devices through the power line or signal line. This function is crucial because it prevents electromagnetic noise from interfering with the normal operation of other devices and ensures the stability of the entire electronic system.
Suppressing radiated interference: In addition to conducted interference, EMI line filters can also absorb or reflect electromagnetic waves generated inside the device to prevent them from radiating to the surrounding space. This helps protect the wireless communication of other devices from interference and ensure the smooth operation of the communication system.
How to choose the right EMI line filter
Choosing the right EMI line filter is crucial to ensure the stable operation of the device. In the selection process, the following factors need to be considered:
- Power and current of the device: Make sure that the rated current and voltage of the selected filter are greater than the maximum operating current and voltage of the device to ensure that the filter can withstand the electromagnetic load generated when the device is running.
- Interference frequency of the equipment: Understand the interference frequency range of the equipment and select filters that can effectively suppress these frequencies. This helps ensure that the filter can effectively suppress the specific interference problems of the equipment.
- Insertion loss of the filter: Insertion loss is an important indicator to measure the performance of the filter. Selecting a filter with insertion loss that meets the requirements of the equipment can ensure that the filter will not have too much impact on the signal transmission of the equipment while suppressing electromagnetic interference.
- Size and installation method of the filter: According to the installation space and installation method of the equipment, select the appropriate filter size and type. This helps ensure that the filter can be smoothly installed on the equipment and compatible with other components.
Wide application of EMI line filters
EMI line filters are widely used in various electronic devices due to their excellent electromagnetic interference suppression capabilities. Here are some typical application scenarios:
- Household appliances: such as TVs, computers, refrigerators, air conditioners, etc. These devices may generate electromagnetic noise during operation, and EMI line filters can effectively suppress these noises to ensure the stable operation of the equipment.
- Industrial equipment: such as inverters, servo drives, PLCs, etc. These devices occupy an important position in industrial automation systems, and EMI line filters can protect them from electromagnetic interference and ensure the smooth operation of production lines.
- Medical equipment: such as electrocardiographs, ultrasound machines, X-ray machines, etc. The stability and accuracy of medical equipment are crucial. EMI line filters can ensure that these devices operate stably in an electromagnetic environment and provide accurate diagnosis and treatment for patients.
- Communication equipment: such as mobile phones, base stations, routers, etc. Communication equipment is extremely sensitive to electromagnetic int
As a leading manufacturer of EMI filtering solutions, DOREXS has extensive R&D experience and advanced production equipment. We are committed to providing customers with high-quality EMI line filter products and services to meet the needs of multiple fields from industrial to consumer electronics.
To learn more about EMI line filtersandEMI solutions, please browse our EMI line filter products or contact our technical team.
