P Series Pin EMI Filters
Model No: P Series Pin EMI Filters

P Series Pin EMI Filters

Rated voltage: 115VAC-250VAC，Rated current: 1A-6A，Specially designed for PCB installation.
Quantity :
Contact Now
Thep series Pin EMI filters are designed for AC and DC power applications and are suitable for PCB installation. They have a rated current range of 1-20A and a compact structure to ensure efficient installation in limited space.
These filters not only effectively suppress electromagnetic interference（EMI) and improve the signal integrity of the system, but also have the advantage of easy installation and are convenient for integration into various electronic devices. Whether in the field of industry or consumer electronics, the p series Pin type EMI filters can significantly improve the performance and reliability of equipment.

    Technical Parameters

    • Product Name:P Series Pin EMI Filters
    • Rated Current:1A-6A
    • Rated Voltage:115VAC-250VAC
    • Working Frequency:50/60HZ
    • Temperature Range:-25℃~85℃
    • Withstand Test Voltage:1500VDC(line/line)，2150VAC(line/ground)
    • Fire Resistance：UL 94V-0

    Model

    Rated

    Current

    Leakage

    Current

    Shell

    model

    Connection Method

    Circuit Diagram

    Enter

    Output

    DAP1-1A1A<0.5mAP1PinPin

    DAP1-2A2A<0.5mAP1PinPin
    DAP1-3A3A<0.5mAP1PinPin
    DAP1-6A6A<0.5mAP1PinPin
    DBP2-1A1A<0.5mAP2PinPin
    DBP2-3A3A<0.5mAP2PinPin
    DCP3-1A1A<0.5mAP3PinPin
    DCP3-3A3A<0.5mAP3PinPin

    request a quotedownload date sheet

    Features

    • Simple structure, PCB installation
    • Pin connection, easy PCB integration
    • Low loss
    • Effective suppression of electromagnetic interference
    • Wide operating frequency range
    • High reliability
    • Compact design, space saving
    • UL, CE and RoHS certified

    Overall Dimension（±1mm)

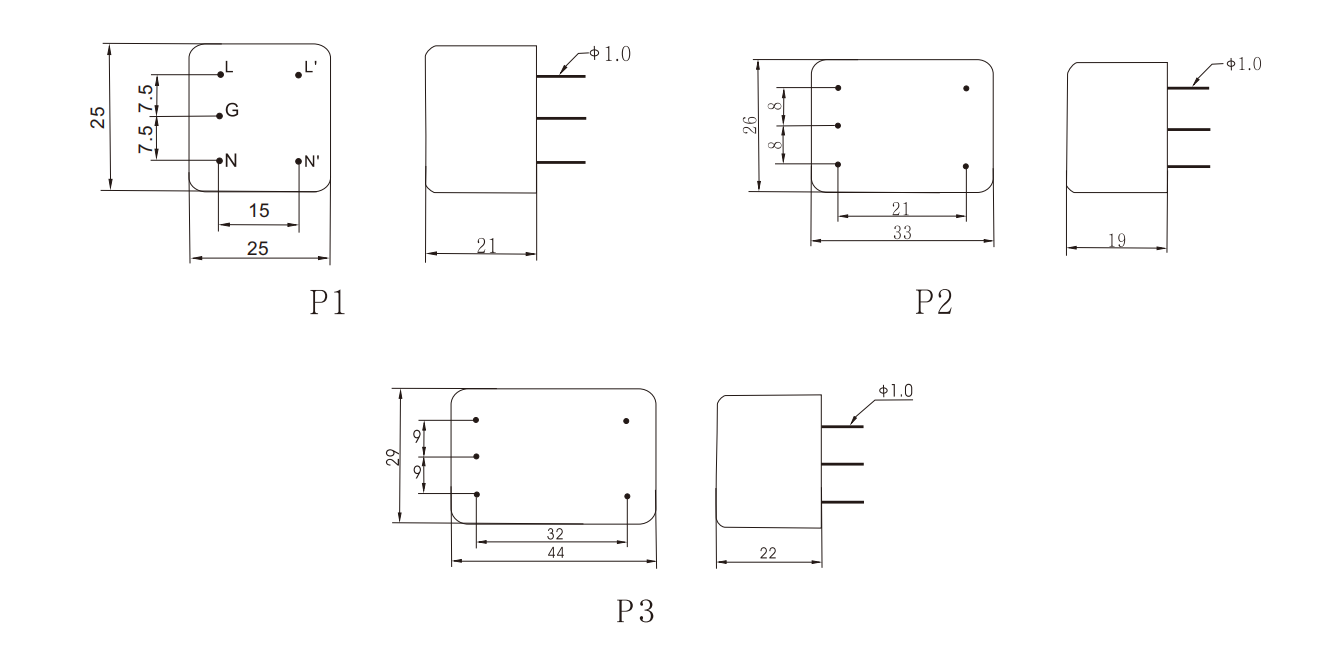

    P Series Pin EMI Filters Overall Dimension（±1mm)

    Insertion loss (——Common mode ------Differential mode）
    P Series Pin EMI Filters Insertion loss (——Common mode ------Differential mode）


    Application

    P series Pin EMI filters are used to reduce electromagnetic interference on signal lines, power lines and other conductors on circuit boards. They are typically used in the following applications:
    • Power management
    • signal line filtering
    • Communication Interface
    • motor control
    • Radio frequency (RF) applications
    • Data storage and processing
    • medical equipment
    To sum up, p series Pin EMI filters are widely used in various electronic equipment, especially module power supplies and small electronic instruments.

    DOREXS provides more P series Pin EMI filters options . Contact our team to find your customized solution.



    Why choose P series Pin EMI filter?
    P series Pin EMI filters are designed for compact integration. By arranging EMI filters directly on the PCB, the complexity and size of the circuit board can be minimized and the reliability and stability of the system can be improved. P series Pin EMI filters have excellent performance and stability. The components of this series of filters are closely integrated with the PCB, which can reduce the contact impedance and inductive coupling between components and improve the efficiency and performance of the filter. PCB EMI filters are cost effective. P Series Pin EMI filters generally have lower manufacturing costs compared to other types of EMI filters. Choosing this series of filters can not only improve the performance and stability of the system, but also reduce the overall manufacturing cost, making it highly cost-effective.


    DOREXS P series Pin EMI filters
    At DOREXS you can find a wide range of standard, off-the-shelf P series Pin EMI filters . This series of EMI filters comes in unipolar and bipolar designs, suitable for use in a variety of complex environments, and can help you comply with strict EMC regulations. This series of EMI filters has a rated voltage of 115VAC-250VAC, a rated current of up to 6A. If you have more requirements, at DOREXS you can also enjoy comprehensive customization services from our designer team.
    Browse our range of P series Pin EMI filters    optionsorcontact our team to find out more about products that can help meet your requirements.
