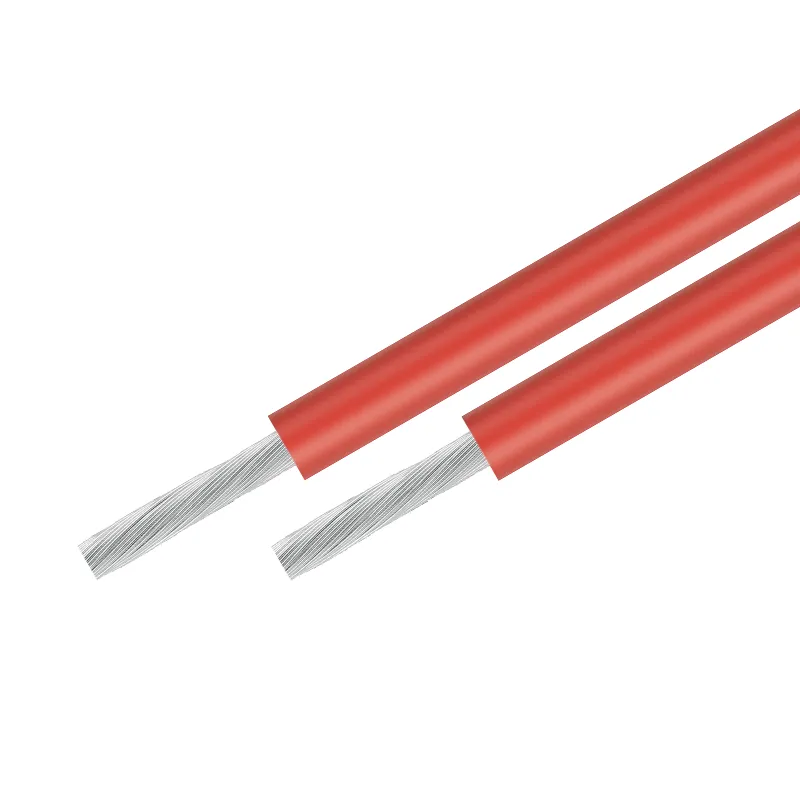

Model No: UL1007,UL 1015
PVC Insulated Wire Series
Conductor: Single or stranded 32~16AWG tinned or bare copper conductor
Insulation: PVC material, environmentally friendly and RoHS compliant
Flame retardant: VW-1/FT1
Insulation: PVC material, environmentally friendly and RoHS compliant
Flame retardant: VW-1/FT1
Quantity :
Subscribe to our Newsletter

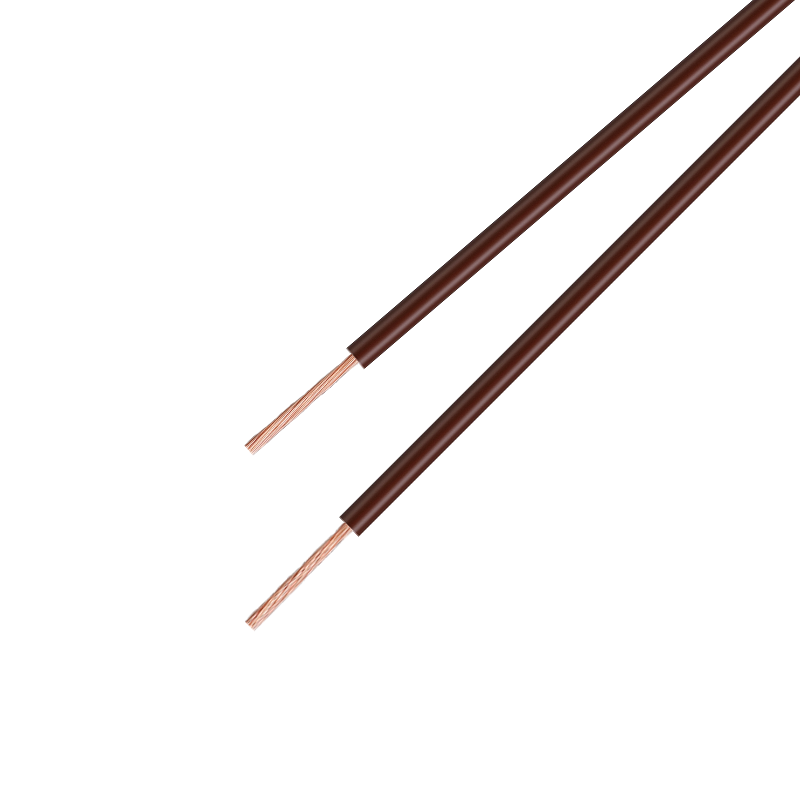

PVC insulated wire is a type of wire that is protected from current leakage and short circuits by coating a conductive material with PVC insulation.
DOREXS provides a variety of UL 1015, UL 1007 PVC insulated wires, which are widely used in internal wiring of electrical appliances, control panels and electronic equipment. Available in a variety of specifications, sizes, conductor material configurations and color options to meet your connecting cable needs.
DOREXS provides a variety of UL 1015, UL 1007 PVC insulated wires, which are widely used in internal wiring of electrical appliances, control panels and electronic equipment. Available in a variety of specifications, sizes, conductor material configurations and color options to meet your connecting cable needs.
Browse the parameter information of our standard PVC insulated wires. For more information, please contact us.

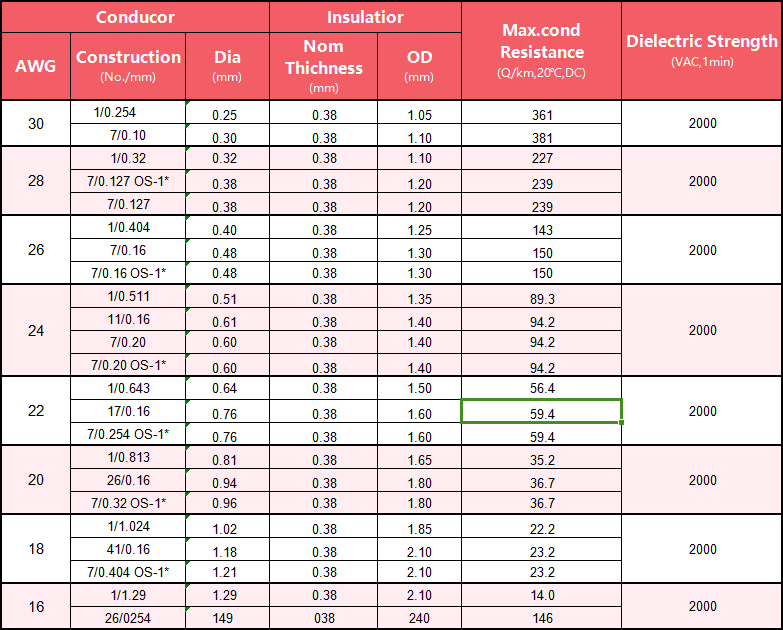

UL 1007 PVC insulated wire
 | Features | Appliication |
| Rated temperature: 80℃ | Appliance wiring industry | |
| Rated voltage: 300V | Medical industry | |
| Reference standard: UL758, UL2556, CSAC22 NO210.2 | Communication industry | |
| Conductor: single or stranded 32~16AWG tinned or bare copper conductor | Wire harness and cable | |
| Insulation: PVC material, environmentally friendly and RoHS compliant | Military/defense industry | |
| Flame retardant: VW-1/FT1 | Automotive industry |

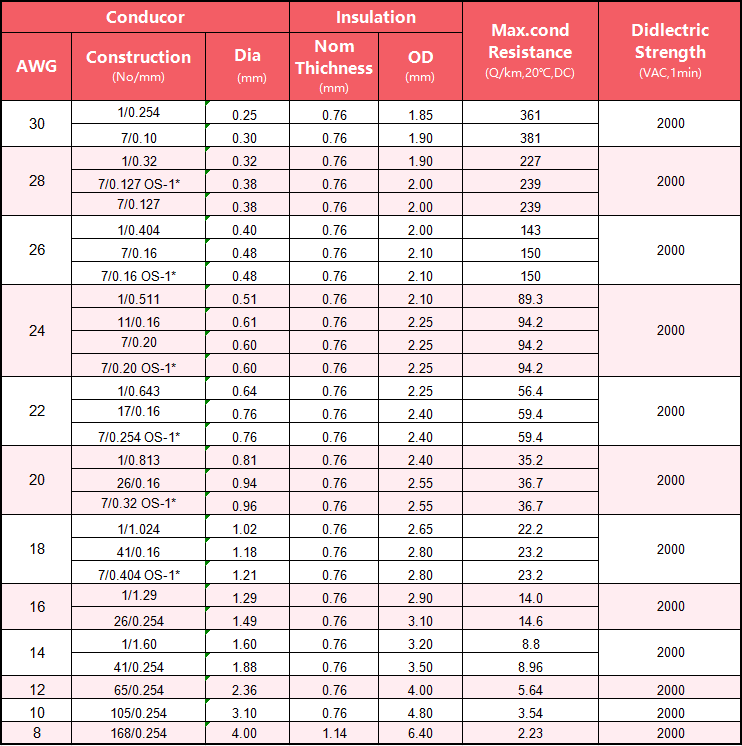

Product Structure Parameters
 | Features | Appliication |
| Rated temperature: 80℃ | Appliance wiring industry | |
| Rated voltage: 360V | Medical industry | |
| Reference standard: UL758, UL2556, CSAC22 NO210.2 | Communication industry | |
| Conductor: single or stranded 32~16AWG tinned or bare copper conductor | Wire harness and cable | |
| Insulation: PVC material, environmentally friendly and RoHS compliant | Military/defense industry | |
| Flame retardant: VW-1/FT1 | Automotive industry |
Product Structure Parameters
PVC insulated low voltage wire-Car wires
 | Features | Appliication |
| Rated temperature: 85℃-150℃ | ||
| Rated voltage: 60V | ||
| Reference standard:ISO6722、GB/T 25085 | Automobile low voltage wire | |
| Conductor: Bare copper stranded conductor, 0.22~35mm | ||
| Insulation: PVC 、PE、PP、XLPE and RoHS compliant |

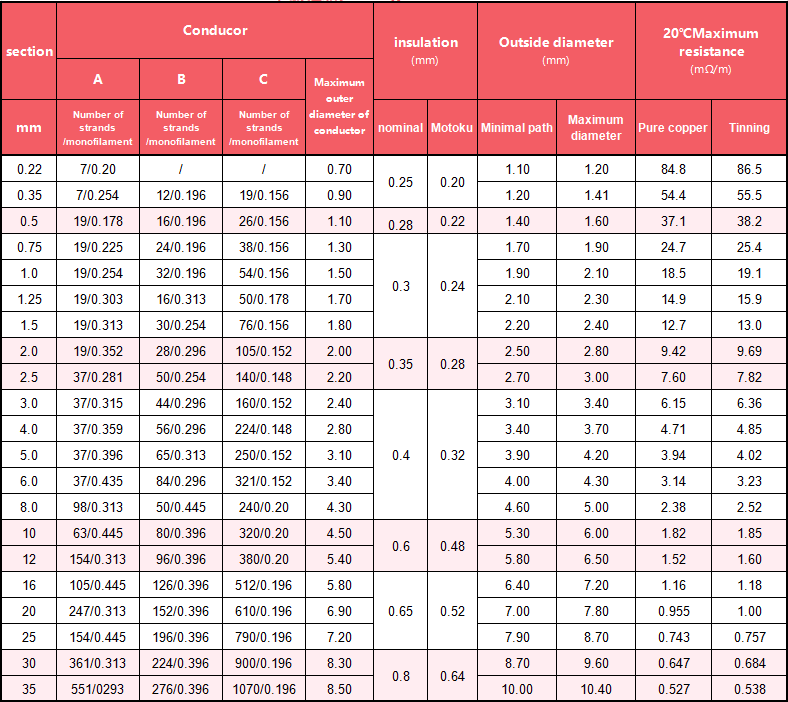

Product Structure Parameters
AVS
| Features | Appliication |
| Rated temperature: 80℃ | ||
| Rated voltage: 60V | ||
| Reference standard:JASO D 611 | Automobile low voltage wire | |
| Conductor: Bare copper stranded conductor, 0.3~8.0mm | ||
| Insulation: PVC 、PE、PP、XLPE and RoHS compliant |

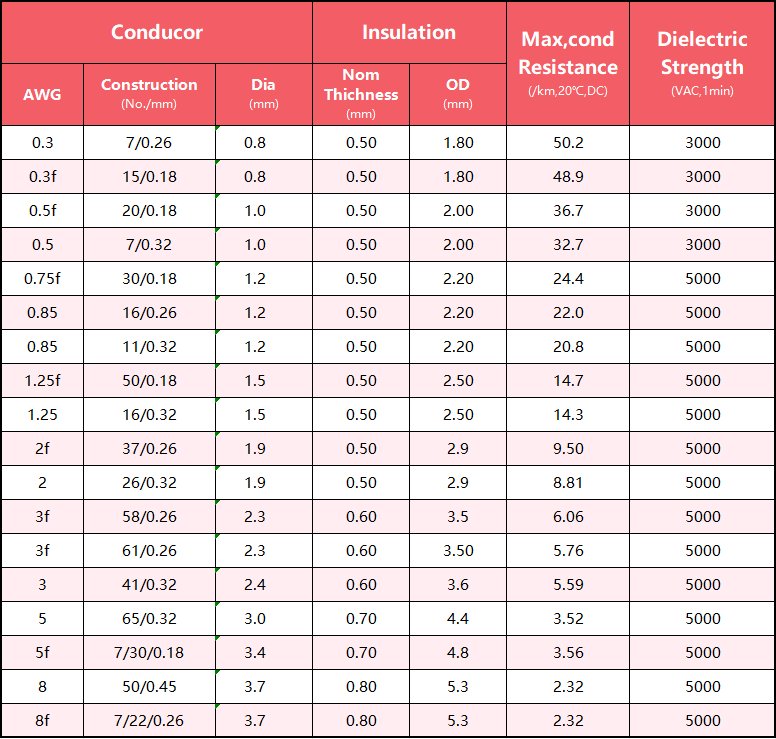

Product Structure Parameters
PVC Insulated Wire-60227IEC 02(RV)
 | Features | Appliication |
| Rated temperature: 70℃ | Household appliances | |
| Rated voltage: 450/750V | Power tools | |
| Reference standard:GB/T 5023 | Construction lighting | |
| Conductor: bare soft stranded copper wire | Power devices | |
| Insulation: PVC |
Product Structure Parameters
PVC Insulated Wire-60227IEC 06(RV)
 | Features | Appliication |
| Rated temperature: 70℃ | Household appliances | |
| Rated voltage: 300/500V | Power tools | |
| Reference standard:GB/T 5023 | Construction lighting | |
| Conductor: bare soft stranded copper wire | Power devices | |
| Insulation: PVC |
Product Structure Parameters
PVC Insulated Wire-60227IEC 08(RV-90)
 | Features | Appliication |
| Rated temperature:90℃ | Household appliances | |
| Rated voltage: 300/500V | Power tools | |
| Reference standard:GB/T 5023 | Construction lighting | |
| Conductor: bare soft stranded copper wire | Power devices | |
| Insulation: PVC |
Product Structure Parameters
PVC Insulated Wire AVR-90
 | Features | Appliication |
| Rated temperature:70℃/90℃ | ||
| Rated voltage: 300V | General Electronic Wire | |
| Reference standard:JB/T8734.4-2016 | Internal wiring of electrical appliances | |
| Conductor: bare soft stranded copper wire | ||
| Insulation: PVC |
Product Structure Parameters
PVC Insulated Wire-60227IEC 52(RVV)
 | Features | Appliication |
| Rated temperature:70℃ | Household appliances | |
| Rated voltage: 300V | Power tools | |
| Reference standard:GB/T 5023 | Construction lighting | |
| Conductor: bare soft stranded copper wire | Power devices | |
| Insulation: PVC |
Product Structure Parameters
PVC insulated wire、Cables, Power cords
DOREXS offers a large inventory of PVC insulated wires, cables and power cords, and supports customization. There are many specifications and configurations to choose from. Please contact the DOREXS team for the latest inventory and prices.
What is PVC insulated wire
PVC insulated wire is a type of wire that uses polyvinyl chloride (PVC) as the insulation material. PVC is a thermoplastic material that has the characteristics of quick stripping, oil resistance, solvent resistance and ozone resistance, and low cost. It is the first choice for cable insulation and sheathing.
Features of PVC Insulated Wire or Cable
PVC insulated wire is fire-resistant, oil-resistant, and chemical-resistant, making it an ideal choice for a variety of applications, including low-power and controlled uses. PVC is also generally the least expensive and best-performing jacket and insulation material, so it is a good choice when cost is an important consideration, especially for larger quantities.
- Excellent insulation properties
- Excellent flexibility
- Chemical resistance
- Abrasion resistance and mechanical strength
- Good resistance to temperature fluctuations and environmental conditions
- Easy to process and install
- A variety of colors to choose from
- Customization available
Common Applications and Industries for PVC Insulated Wire or Cable
- Motors
- Transformers
- Fluorescent Light Ballasts
- Distribution Panels
- Panels
- Controls
- Rectifiers
- Electronic Circuits
- Building Electrical Installation Wire.
- Household Appliances
- Industrial Equipment
- Automotive Electrical Systems
- Communication Equipment
- Appliance Wiring Industry
- Medical Industry
- Military/Defense Industry
- Wire Harnesses and Cable Assemblies
How to choose PVC insulated wire
When choosing PVC insulated wire, you need to consider the following factors according to the specific application scenario:
Voltage level: Choose the appropriate insulation thickness and wire specifications according to the voltage level used by the wire.
Working temperature: Consider the temperature range of the wire in the working environment to ensure that the PVC material can maintain good performance within this temperature range.
Mechanical properties: Choose the appropriate wire type according to the possible mechanical stress and wear in the use environment.
Environmental factors: Consider environmental factors such as chemicals, humidity and ultraviolet rays that the wire may be exposed to, and choose PVC wires that are suitable for these conditions.
