6-150A C Series Three Phase Universal EMI Filter
Model No: C Series

C Series Three Phase Universal EMI Filter

C Series Three Phase Universal EMI Filter,6A-150A,Suitable for three-phase three-wire power supply equipment
Quantity :
Contact Now
DOREXS provides standard off-the-shelf three-phase universal EMI filters with rated currents of 6A-150A and multiple connection methods such as bolts and power cords. Customization is supported.
This series of three-phase industrial EMI filters is suitable for three-phase three-wire equipment. It is compact, easy to install, and has excellent anti-interference performance. It can effectively suppress high-frequency electromagnetic interference signals in the three-phase power supply system and effectively improve the stability and safety performance of the equipment.

Technical Parameters

  • Product Name:C Series Three Phase Universal EMI Filter
  • Rated Current:6A-150A
  • Rated Voltage:380VAC/440VAC
  • Working Frequency:50/60HZ
  • Insulation Resistance:＞200MΩ@500VDC
  • Temperature Range:-25℃~85℃
  • Temperature Rise:＜30℃
  • Withstand Test Voltage:1500VDC(line/line)，2250VAC(line/ground)
  • Fire Resistance：UL 94V-0

Model

Rated

Current

Leakage

Current

Shell

model

Connection Method

Circuit Diagram

Enter

Output

DAC1-10A10A<1.5mAC1BoltBolt
three phase universal EMI filter Circuit Diagram

DAC1-20A20A<1.5mAC1BoltBolt
DAC2-6A6A<1.5mAC2BoltBolt
DAC3-30A30A<1.5mAC3BoltBolt
DAC4-50A50A<2.0mAC4BoltBolt
DAC5-40A40A<2.0mAC5BoltBolt
DAC5-50A50A<2.0mAC5BoltBolt
DAC6-100A100A<2.0mAC6BoltBolt
DAC6-150A150A<2.0mAC6BoltBolt
request a quatedownload data sheet

Features

  • Compact appearance design, easy to install in small spaces
  • A variety of installation terminals are available, safe and reliable
  • Excellent anti-interference performance
  • Support customization
  • Three-phase three-wire (Delta) line design

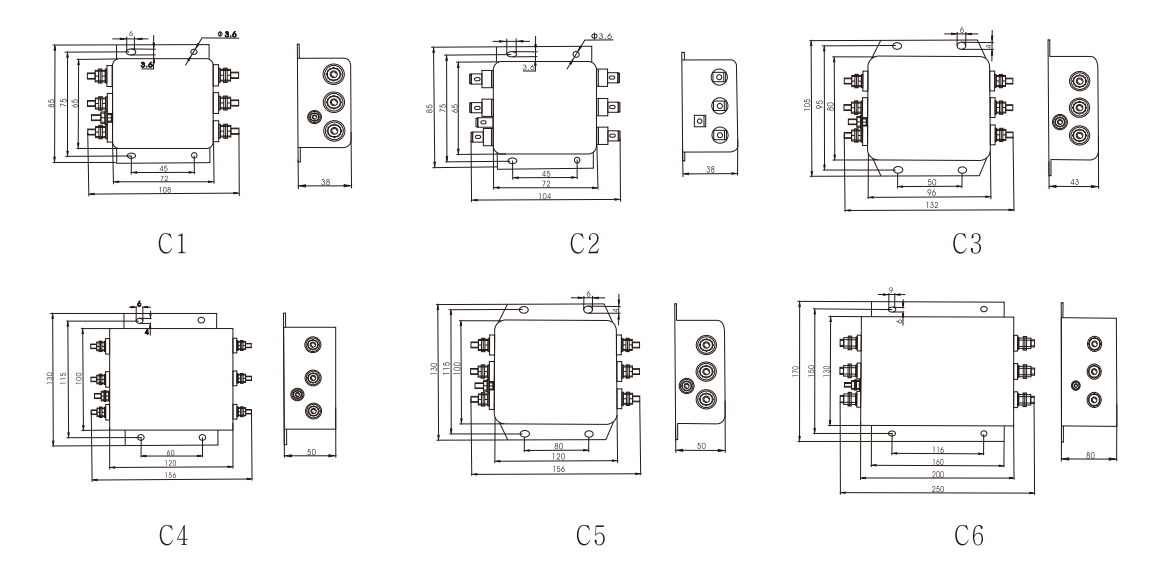

Overall Dimension（±1mm)

three phase universal EMI filter Overall Dimension（±1mm)

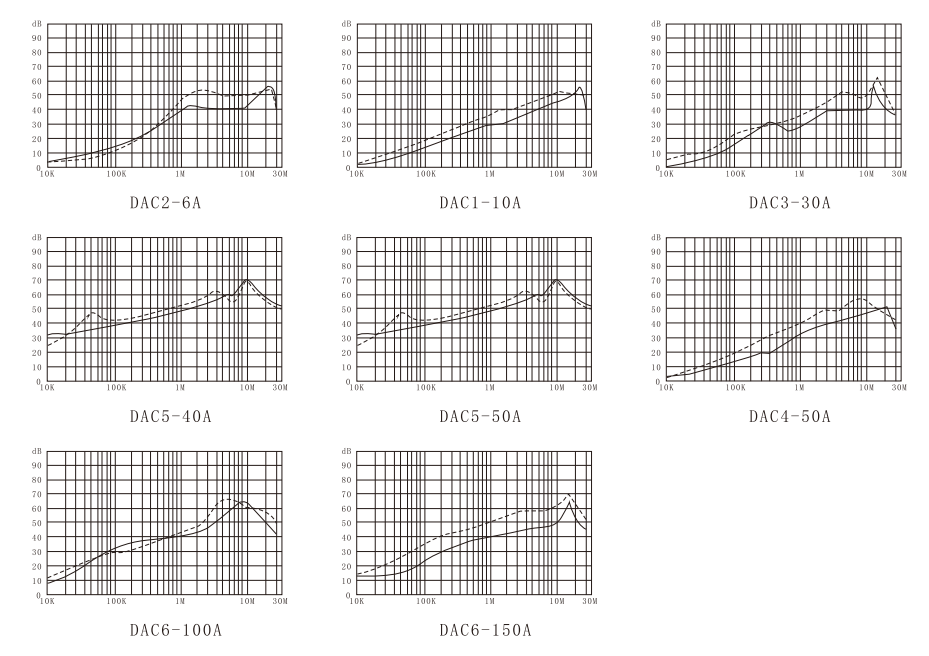

Insertion loss (——Common mode ------Differential mode）

three phase universal EMI filter Insertion loss (——Common mode ------Differential mode）


Application

Three phase universal EMI filters are widely used in power systems, mainly used to eliminate harmonics and clutter in power systems and provide clean power. The following are some application scenarios of three phase universal EMI filters:
Industrial power systems
Large power equipment
Transformer
Frequency converter
Rectifier
Inverter.
Elevator
Air conditioner


DOREXS provides more three phase universal EMI filters.Contact our team to find your customized solution.

Why choose three phase universal EMI filters?
In different application scenarios, the power requirements are different. We can roughly divide it into two types: one is the power demand of small equipment (such as consumer appliances, household appliances), and the other is high-power equipment (such as industrial power systems). The power requirements of small equipment are very small, and we generally use single-phase power supply, but high-power applications require three-phase power systems.
Compared with single phase filters, three phase universal EMI filters can provide more effective noise suppression in high-power equipment. Single-phase filters cannot meet the demand. Three-phase EMI filters can ensure stable operation of high-power equipment. At the same time, the three phase universal EMI filter has high cost performance, compact design and low cost. It is a good choice among three-phase filters.

DOREXS C Series Three Phase Universal EMI Filter
At DOREXS you can find a wide range of standard, off-the-shelf C Series three phase universal EMI filters. This series of three phase filters is suitable for three-phase three-wire (Delta) power supply equipment and helps you comply with strict EMC regulations. The rated voltage of this series of EMI filters is 380VAC/440VAC, and the rated current is up to 150A. If you have more requirements, at DOREXS you can also enjoy comprehensive customization services from our designer team.
Browse our range of c series three phase universal EMI filteroptionsorcontact our team to find out more about products that can help meet your requirements.
