Model No: Product Category: 10A Single Phase EMI Filters

10A Single Phase EMI Filter for Industrial Equipment and EMC Compliance

DOREXS provides 10A single phase EMI filters for AC-powered equipment requiring conducted EMI suppression, reliable power-line filtering and improved EMC performance.
Multiple 10A configurations are available for industrial and electronic systems, including compact chassis-mounted filters, high-performance two-stage filters and IEC inlet power-entry filters.
✔Rated Current: 10A
✔Power System: Single Phase AC
✔Typical Voltage: 110/115–250VAC
✔Frequency: 50/60Hz
✔Noise Suppression: Common Mode + Differential Mode
✔Filter Options: Single Stage / Two Stage
✔Installation Options: Chassis / DIN Rail / IEC Inlet
✔Low-Leakage Options: Available by series
✔OEM & Custom Design: Available
✔ International Compliance Support(UL、CB、ISO 9001、CE&Rohs)
Quantity :
Contact Now


Available 10A Single Phase EMI Filter Models

A 10A current rating is available in several electrical and mechanical configurations. The correct model should be selected according to the required attenuation, installation method, leakage-current limit and equipment power-entry structure.

Series

Filter Type

Current Range

Voltage

Installation

Best Suited For

DAA1General-purpose single-stage EMI filter1–10A110/115–250VACChassis / PanelElectronic equipment, control systems and general industrial applications
DEA4High-performance two-stage EMI filter3–20AUp to 275VACTerminal / DIN Rail / ChassisIndustrial control cabinets and equipment requiring higher attenuation
DBI5IEC inlet EMI filter with fuse/switch options1–10AUp to 275VACIEC Power EntryEquipment requiring integrated AC inlet, filtering and protection functions



Which 10A EMI Filter Should I Choose?

Choose DAA1 when:

  • A compact general-purpose filter is required

  • Chassis or panel mounting is preferred

  • The equipment requires standard conducted EMI suppression

  • Faston or wire connections are suitable

Choose DEA4 when:

  • Stronger conducted-noise suppression is required

  • A two-stage filter structure is preferred

  • The filter will be installed inside an industrial control cabinet

  • DIN rail or terminal-block installation is required

Choose DBI5 when:

  • EMI filtering is required directly at the equipment AC inlet

  • An IEC power-entry structure is preferred

  • Fuse and switch integration can simplify equipment design

  • Space inside the equipment is limited

Not sure which model is suitable?

Send DOREXS your:

Input Voltage + Maximum Current + Equipment Type + EMC Test Result + Installation Method + Leakage-Current Requirement

and our engineering team can evaluate an appropriate configuration.

10A EMI Filter Technical Overview

Because DAA1, DEA4 and DBI5 use different circuit and mechanical designs, their detailed electrical specifications should be confirmed individually.


Parameter

Typical / Available Options

Product Category10A Single Phase EMI Filter
Rated Current10A
Power SystemSingle Phase AC
Operating VoltageTypically 110/115–250VAC
Maximum VoltageUp to 275VAC depending on series
Frequency50/60Hz
Noise SuppressionCommon Mode + Differential Mode
Filter StructureSingle Stage / Two Stage
Leakage CurrentStandard / Low-Leakage Options
InstallationChassis / Panel / DIN Rail / IEC Inlet
ConnectionFaston / Wire / Terminal Block / IEC
Operating TemperatureTypically -25°C to +85°C depending on model
CustomizationElectrical parameters, housing, terminals, wiring and attenuation

Always use the datasheet of the selected DAA1, DEA4 or DBI5 model for final electrical and mechanical design.

Product Pictures

Detail Picture

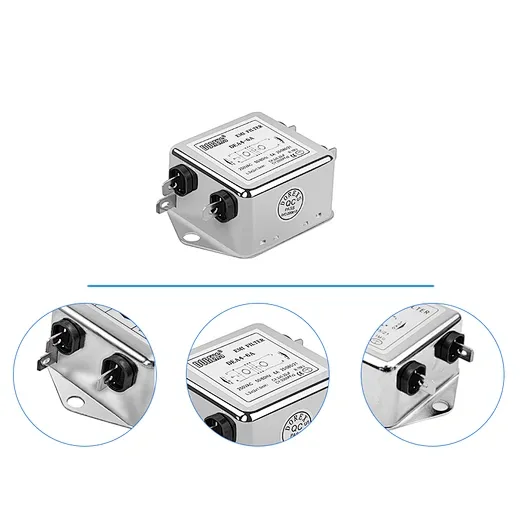

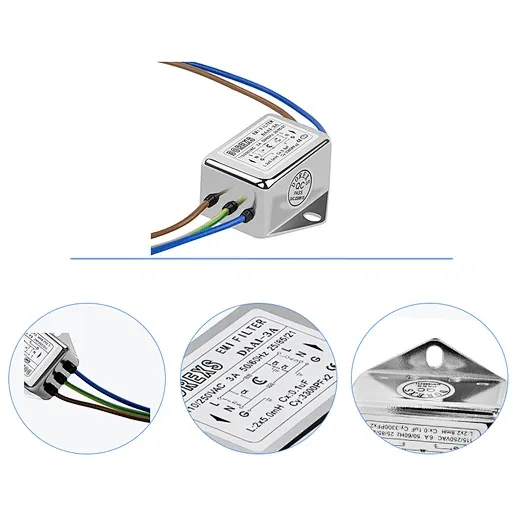

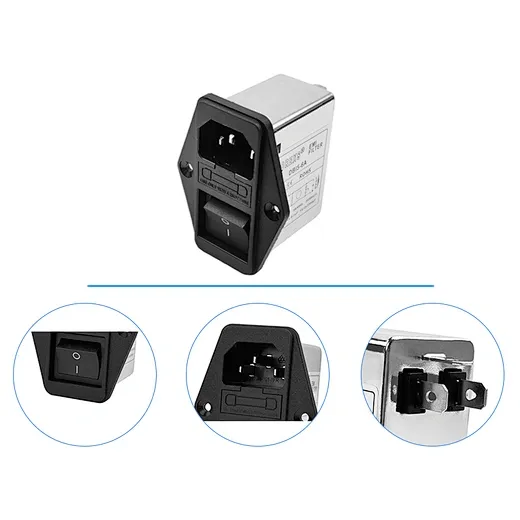

DAA1 10A SINGLE PHASE EMI FILTERDEA4 10A SINGLE PHASE EMI FILTERDBI5 IEC 10A SINGLE PHASE EMI FILTER

DAA1

DEA4

DBI5




Overall Dimension(±1mm)

DAA1 single phase emi filter Overall Dimension
dea4 single phase emi filter Overall Dimension
DBI5 single phase iec emi filter Overall Dimension

DAA1

DEA4

DBI5

Circuit Diagram

DAA1 10A SINGLE PHASE EMI FILTER Circuit Diagram
DEA5 10A SINGLE PHASE EMI FILTER Circuit Diagram
DBI5 10A SINGLE PHASE EMI FILTER Circuit Diagram

DAA1

DEA4

DBI5

Typical Applications of 10A Single Phase EMI Filters


10 A EMI Filter for Industrial Automation Equipment

EMI Filter for Industrial Automation Equipment

Industrial automation equipment commonly operates in environments where multiple electronic systems share the same power infrastructure. PLC systems, control panels, industrial controllers, and automation cabinets often experience electrical noise generated by switching devices and motor drives.
Installing a single phase EMC filter helps reduce conducted interference and improves the stability of sensitive electronics operating within these systems.

EMI Filter for Servo Drive Systems

Servo systems generate high-frequency switching noise that may interfere with encoder feedback signals, motion control circuits, and industrial communication networks.
Using an EMI filter for servo drive applications improves signal integrity and helps minimize electrical disturbances that affect positioning accuracy and communication reliability.
EMI Filter for Servo Drive Systems

EMI Filter for Variable Frequency Drives

EMI Filter for Variable Frequency Drives

Variable frequency drives are among the most common sources of conducted emissions in industrial environments. PWM switching inside VFD systems creates high-frequency noise that can travel through power distribution systems.
A properly selected EMI filter for VFD installations helps reduce interference, improve EMC performance, and protect nearby electronic equipment from unwanted noise coupling.

Applications in Medical Equipment and Electronic Devices


Medical electronics, switching power supplies, communication equipment, and renewable energy systems often require improved electromagnetic compatibility performance. The 10A single phase EMI filter supports these applications by reducing power line interference while maintaining reliable system operation.
Applications in Medical Equipment and Electronic Devices

Insertion Loss Performance

Stable EMI Attenuation Performance
The DOREXS 10A EMI power filter is designed to provide effective insertion loss performance across both common mode and differential mode frequencies.
Typical benefits include:
  • Improved EMC test margins
  • Reduced conducted emissions
  • Better power quality
  • Lower interference between connected equipment
Insertion loss performance may vary according to installation conditions and cable layout.

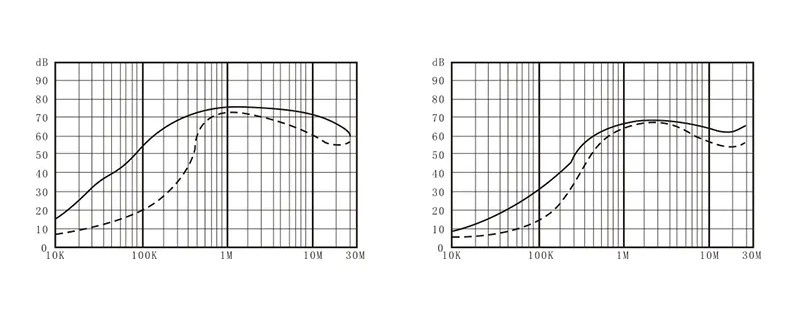

DEA4 single phase emc filter Insertion Loss

Mechanical Design

Compact Installation Structure
The compact housing design allows installation inside:
  • Electrical cabinets
  • Industrial control boxes
  • Equipment chassis
  • Power distribution systems
Available options:
  • Fast-on terminals
  • Screw terminals
  • Wire leads
  • Custom mounting brackets

Certifications & Compliance

International EMC Compliance Support
DOREXS EMI filters are manufactured under strict quality management procedures and designed to support global equipment manufacturers.
Compliance support includes:
  • UL Compliance
  • CE Compliance
  • RoHS Compliance
  • EMC Design Support
  • ISO 9001 Industrial Quality Control
These features help OEM manufacturers simplify EMC qualification processes.
DOREXS single phase emi filter certifications


Custom EMI Filter Solutions

OEM & Custom 10A EMI Filter Manufacturing
DOREXS supports custom EMI filter development based on application requirements.
Customization options include:
  • Electrical Customization
  • Different current ratings
  • Leakage current adjustment
  • Enhanced attenuation performance
  • Mechanical Customization
  • Housing dimensions
  • Mounting methods
  • Terminal structures
  • Industry-Specific Solutions
  • Medical applications
  • Industrial automation
  • Power electronics
  • Communication equipment
Our engineering team supports custom EMC optimization projects from prototype through volume production.

Need a Custom EMI Filter Solution?

Send your project requirements:

Operating Voltage
Maximum Continuous Current
Equipment Type
Single Phase Power Configuration
EMC Test Result
Failed Frequency Range
Installation Space
Connection Method
Leakage-Current Requirement

DOREXS can evaluate whether a standard DAA1, DEA4 or DBI5 10A filter is suitable or whether a custom EMI filter configuration is required.

Request a Quote | Ask an Engineer



FAQ

What is a 10A single phase EMI filter?

A 10A single phase EMI filter is a power-line interference suppression device designed for single phase AC circuits carrying up to its specified 10A rated current under defined operating conditions. It attenuates high-frequency conducted common-mode and differential-mode interference.

Can a 10A EMI filter be used on 220V or 230V equipment?

Yes, provided the selected filter is rated for the equipment voltage. DOREXS DAA1, DEA4 and DBI5 series include configurations suitable for common single phase AC systems.

Does a 10A filter work better than a 6A filter?

Not necessarily. Current rating primarily determines current-carrying capability. EMI attenuation depends on circuit structure, inductance, capacitance, filter stage, noise frequency and installation conditions.

What is the difference between DAA1 and DEA4?

DAA1 is a compact general-purpose single-stage filter. DEA4 uses a higher-performance two-stage structure and is better suited to industrial applications requiring greater conducted-noise attenuation.

When should I choose DBI5?

DBI5 is appropriate when the equipment requires an IEC power inlet together with EMI filtering. Fuse and switch integration can also simplify the equipment power-entry design.

Should I choose a single-stage or two-stage 10A EMI filter?

A single-stage filter is suitable for many general applications. A two-stage filter may be more appropriate when the EMC failure is larger, the noise spectrum is broader or stronger attenuation is required.

Can a 10A EMI filter be used with a VFD?

It can be used only when the electrical rating and application conditions are suitable. Some low-power single phase drives or auxiliary circuits may operate within a 10A rating, but higher-power or three-phase drives require appropriately rated VFD or three-phase EMI filters.

Are low-leakage 10A EMI filters available?

Yes, low-leakage configurations are available for selected product series. Leakage-current requirements should be defined together with the required common-mode attenuation.

How much current margin should I leave?

Selection should consider maximum continuous current, startup conditions, temperature and load variation rather than only nominal operating current. If the equipment may exceed 10A, select a higher-current model.

Why might an EMI filter fail to solve an EMC problem?

Common causes include:

  • Incorrect filter circuit

  • Filter installed too far from the power entry

  • Poor grounding

  • Input/output cable coupling

  • Wrong attenuation frequency range

  • Noise bypassing the filter

  • Common-mode current flowing through another path

EMC test data and installation layout should therefore be reviewed together.

Can DOREXS customize a 10A EMI filter?

Yes. Electrical parameters, leakage current, attenuation characteristics, terminals, wiring, mounting method and enclosure dimensions can be evaluated according to the equipment requirements.
