DEA4 single phase high performance EMI filter

Model No: DEA4

DEA4 Single Phase EMI Filter,Terminal blocks, Rails,3A-20A,50/60Hz

Single-phase, Two-stage

Rated Current：3A-20A

High Performance EMI Filter

Certificate：cUL,CQC,CE,ROHS

Can be customize according to customer requirements.

Support free samples

Quantity :

Contact Now

TheDEA4 EMI filter is an efficient two-stage filter that uses connection designs such as terminal blocks, rails, plugs and bolts to ensure a more stable installation. The filter is suitable for scenarios with a rated current of 3-20A and a rated voltage of 110/250VAC. Customized versions can also be provided according to user needs to meet the specific needs of different applications.
As an AC noise filter, the DEA4 series filter is specifically used to selectively eliminate noise signals within a specific frequency range to ensure that electronic equipment obtains a cleaner and more stable power input. The filter is composed of inductors and capacitors, and adopts a two-stage filter design, which can effectively suppress differential and common mode interference, making it particularly outstanding in dealing with complex electromagnetic environments.

Key Features

Two-stage filtering design effectively suppresses common-mode and differential-mode interference on power lines.
Rated current ranges from 3 A to 20 A, suitable for various power levels.
Maximum operating voltage of 275 VAC, compatible with global power systems.
Multiple connection/mounting options: terminal blocks, DIN rail, plugs/bolts/cables, providing flexible and secure installation.
Low leakage current (≤ 0.5 mA), suitable for applications with high safety requirements.
Compact yet robust design (approximately 83 × 51 × 30 mm), saving space while ensuring durability.
Customization options available (cable length, terminal type, filtering parameters).
Certified with UL, CE, CQC, RoHS, and other certifications.

Technical Specifications

Specification

Details

Model：

DEA4

Application：

Industrial / Commercial

Phase：

Single-phase

Structure：

Two-stage

Max operating voltage：

275VAC

Rated Current：

3A - 20A

Leakage Current：

≤ 0.5mA

Withstand voltage level：

2150VAC

Frequency Range：

50/60Hz

Operating Temperature：

-25°C ~ +85°C

Certifications：

UL, CQC, CE

Dimensions (mm)：

83 × 51 × 30 (W×H×D)

Weight(g)：

180

Connection Type：

terminal blocks, rails/Bolt/Insert/Power cord

Product Pictures

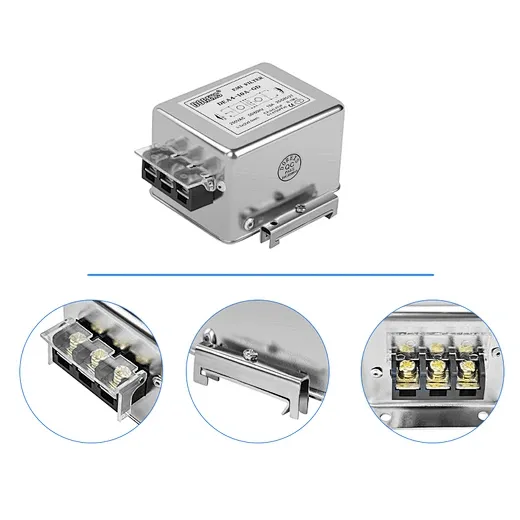

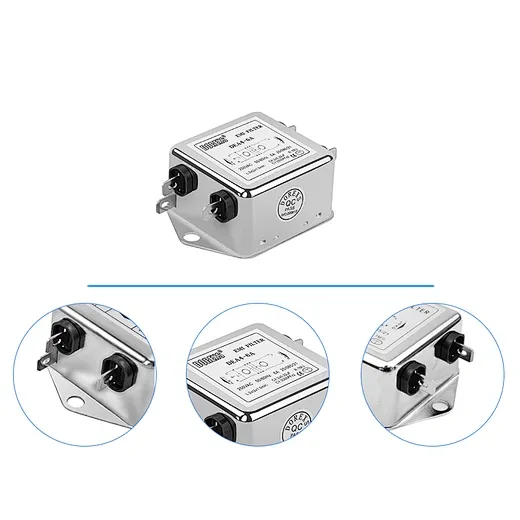

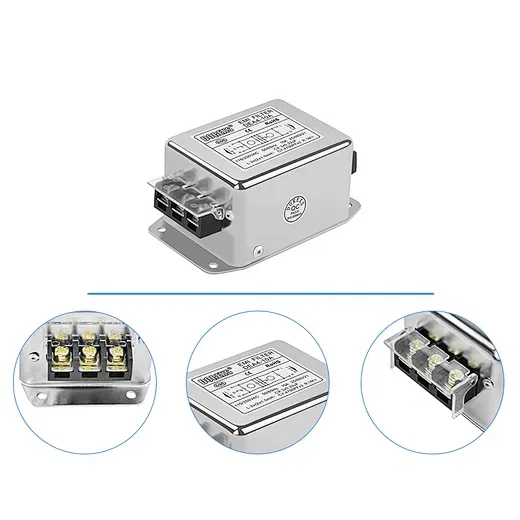

Detail Picture

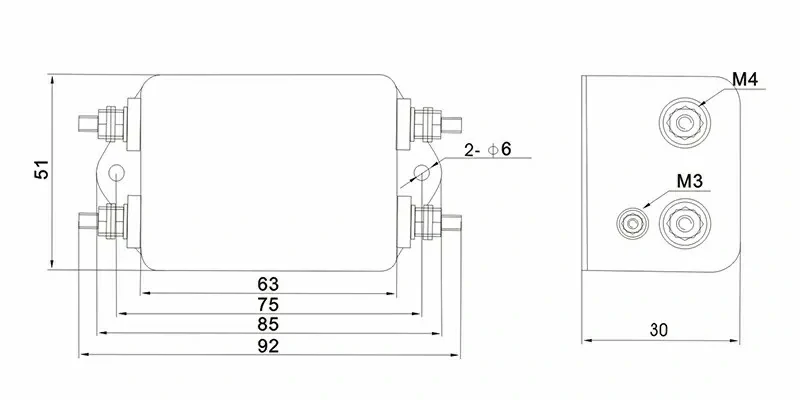

Overall Dimension（±1mm)

Circuit Diagram

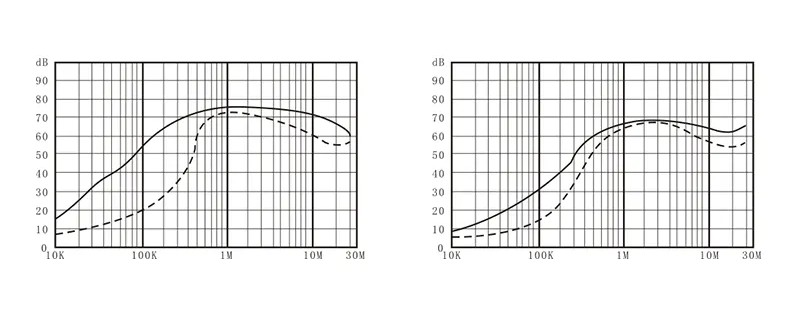

Insertion Loss

The DEA4 filter employs a two-stage filtering structure, composed of inductors and capacitors, capable of simultaneously suppressing both common-mode and differential-mode interference. It performs exceptionally well in complex electromagnetic environments. Please refer to the product datasheet for specific insertion loss curves.

Customization Options

Cable length and interface type can be customized according to customer needs. DOREXS can also customize EMI filter parameters and appearance dimensions according to customer equipment requirements. At DOREXS, everything is based on customer requirements and we are committed to creating exclusive EMI solutions for customers.

Approvals and Compliances

Applications

Electrical and electronic equipment
Consumer appliances
Household equipment
Medical equipment
Office automation equipment
Data communication equipment

Selection Guide

When selecting a DEA4 EMI filter, consider the following factors:

Rated Current — Choose a 3 A–20 A model based on the maximum current of your equipment.
Connection/Mounting Method — Select terminal block, DIN rail, bolt/plug, or cable connection depending on the installation environment.
Leakage Current/Safety Requirements — Leakage current ≤ 0.5 mA, suitable for equipment with high safety requirements.
Voltage/Power System Compatibility — Supports up to 275 VAC, suitable for global power grids.
Space and Installation Environment — Compact form factor (83 × 51 × 30 mm) is suitable for space-constrained environments such as control cabinets and DIN rails.
Customization Needs — Cable length, terminal type, and other parameters can be customized according to customer requirements.

Installation Instructions

Connect the DEA4 filter in series with the AC power line to achieve optimal filtering performance.
Select the appropriate mounting method (terminal block/DIN rail/bolt/cable) based on the cabinet/control panel design.
Keep wiring as short as possible to reduce parasitic inductance and improve filtering performance.
Ensure reliable grounding when necessary.
Avoid routing sensitive signal lines parallel to the power line filter to reduce coupling interference.

If you are interested in DEA4 EMI filters, please contact us to receive: free samples for testing and evaluation, customized specifications (current, voltage, connection type, etc.), technical support and selection guidance, and competitive pricing.
