DEB1 Dual-stage EMI filter 1A-6A
Model No: DEB1 Line

DEB1 EMI Filter | Single-Phase 1A-6A Compact Power Line Noise Suppression

Single Phase , Two Stage

Rated Current：1A-6A

Two Stage Power Line EMI Filter

Certificate：CQC,CE,ROHS

Can be customize according to customer requirements.

Support free samples
Quantity :
Contact Now

TheDEB1 EMI filter is a compact single-phase power line filter with a rated current of 1 A–6 A, suitable for 110/220 V AC (115/250 VAC) power supplies. It utilizes a dual-stage filter circuit design, providing excellent suppression of high-frequency common-mode and differential-mode interference from 100 kHz to 30 MHz.
The DEB1 features simple wiring and easy installation, making it ideal for home appliances, small industrial equipment, medical devices, LED/lighting systems, and other EMI-sensitive equipment. Custom configurations are supported, and sample testing is available upon request.

Key Features

  • Dual-stage filtering design – effectively suppresses power line conducted noise.
  • Rated current 1 A–6 A, suitable for low to medium power equipment.
  • Rated voltage 115/250 VAC, compatible with most national power grid standards.
  • Provides excellent suppression of both common-mode and differential-mode EMI interference in the 100 kHz–30 MHz frequency range.
  • Compact structure and easy installation – ideal for space-constrained or retrofit applications.
  • Excellent insulation and voltage withstand performance: line-to-line withstand voltage 1500 VDC, line-to-ground withstand voltage 2150 VAC; insulation resistance > 50 MΩ @ 500 VDC.
  • Customization (e.g., wiring method, current specifications) and sample testing are available, making it ideal for OEM/ODM customers.
  • UL certified, ensuring your product complies with local laws and regulations.

Technical Specifications


Specification
Details
Model：
DEB1
Application：
Industrial / Commercial
Phase：
Single-phase
Structure：
Two-stage
Max operating voltage：
275VAC
Rated Current：
1A - 6A
Leakage Current：
≤ 0.5mA
Withstand voltage level：
2150VAC
Frequency Range：
50/60Hz
Operating Temperature：
-25°C ~ +85°C
Certifications：
CQC, CE
Dimensions (mm)：
52 × 33 × 29 (W×H×D)
Weight(g)：
90
Connection Type：
Power cord

download date sheetrequest a quote

Product Pictures

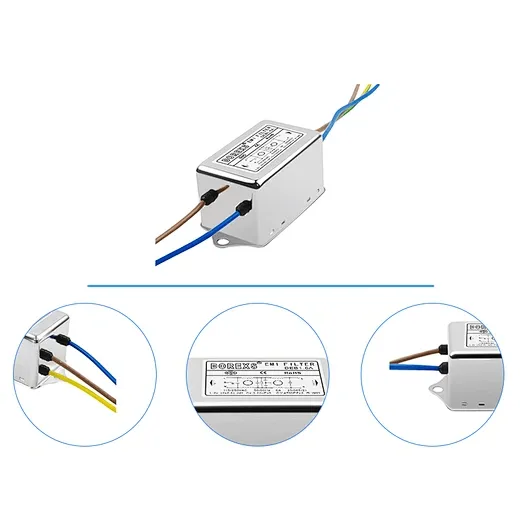

Detail Picture

DEB1 Detail Picture

Overall Dim

DEB1 Overall Dim

Circuit Diagram

DEB1 Circuit Diagram

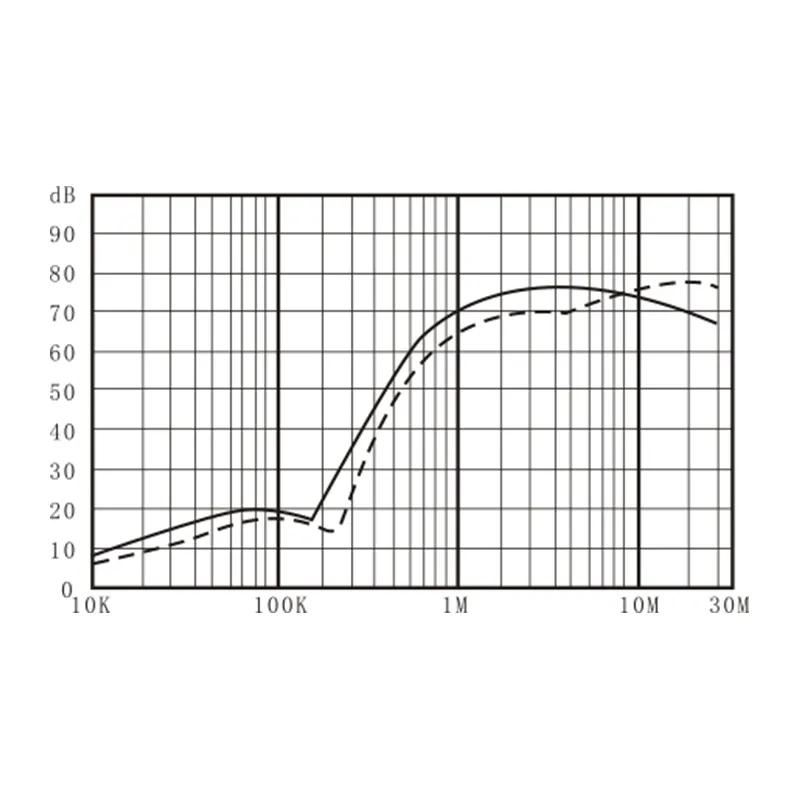

Insertion Loss

DEB1 EMI Filter insertion loss — common-mode & differential-mode

Customization Options

Cable length and interface type can be customized according to customer needs. DOREXS can also customize EMI filter parameters and appearance dimensions according to customer equipment requirements. At DOREXS, everything is based on customer requirements and we are committed to creating exclusive EMI solutions for customers.

Approvals and Compliances

Approvals and Compliances

Applications

  • Electrical and electronic equipment
  • Consumer products
  • Household appliances
  • Automation equipment
  • Industrial robotics applications
  • Medical equipment
  • Applications with high filtering performance


Selection Guide

When selecting a DEB1 EMI filter, please consider:
  1. Rated Current — Choose a 1 A–6 A model based on the maximum power consumption of your device.
  2. Filtering Requirements — For devices sensitive to 100 kHz–30 MHz EMI (such as electronics, LEDs, medical equipment, etc.), the dual-stage DEB1 provides strong suppression.
  3. Space/Installation Constraints — The compact structure of the DEB1 is suitable for devices with limited space or requiring modifications.
  4. Voltage Compatibility — Supports 115/250 VAC, suitable for global power grids.
  5. Customization Needs — Wiring methods, current ratings, certifications, etc., can be customized according to OEM/mass production requirements.

Installation Instructions

  • Connect the DEB1 in series with the AC power line (live wire + neutral wire) for optimal filtering performance.
  • Use wire-to-wire connections; if grounding is required (according to equipment requirements), ensure proper grounding.
  • Minimize wiring length to reduce parasitic inductance and improve filtering effectiveness.
  • Avoid routing sensitive signal lines parallel to power lines to reduce coupling interference.
  • For space-constrained or retrofit applications, the compact structure of the DEB1 facilitates installation.
