noise suppression flter
Model No: DAA2-Line

DAA2-Line Single Phase EMI Filter 1-10 A 220V

Rated Current：1A-10A

High differential and common-mode attenuation

Certificate：cUL,CQC,CE,ROHS

Can be customize according to customer requirements.

Support free samples
Quantity :
Contact Now
DAA2-line single phase EMI filters are designed for use in electronic equipment and power systems to suppress electromagnetic interference (EMI). There are two installation methods (power cord link and plug-in installation). This series of single phase line filters are usually composed of capacitors, inductors and resistors, with the same rated voltage of 220V and rated current of 1A-10A. We also provide customized models with a maximum current of up to 50A.

Features

  • The DAA2 line EMI filter effectively suppresses electromagnetic interference in power lines.
  • The DAA2 line EMI filter effectively filters out harmonic signals in power lines.
  • Excellent differential-mode and common-mode interference suppression.
  • Overvoltage protection.
  • Compact design, easy installation.
  • Multiple installation options available, including cable connection or standard 6.3×0.8mm pin connector.
  • Customization supported (cable length, connector type, parameters, etc.).
  • Free samples available.

Technical Parameters


Specification
Details
Model：
DAA2-Line
Application：
Industrial / Consumer Electronics
Phase：
Single-phase
Structure：
Single-stage
Max operating voltage：
275VAC
Rated Current：
1A - 10A
Leakage Current：
≤ 0.5mA
Withstand voltage level：
2150VAC
Frequency Range：
50/60Hz
Operating Temperature：
-25°C ~ +85°C
Certifications：
UL, CQC, CE
Dimensions (mm)：
44 × 22 × 18 (W×H×D)
Weight(g)：
65
Connection Type：
Insert/Power cord

download date sheetrequest a quote

Technical Advantages

  • High insertion loss (noise suppression) in the 1 MHz–30 MHz high-frequency range
  • Low leakage current (≤ 0.5 mA)
  • Withstands voltage up to 2150 VAC (line-to-ground) test voltage
  • Wide temperature range: -25 °C to +85 °C
  • Flexible design — wire-connectable or plug-in, supporting customer customization

Product Pictures

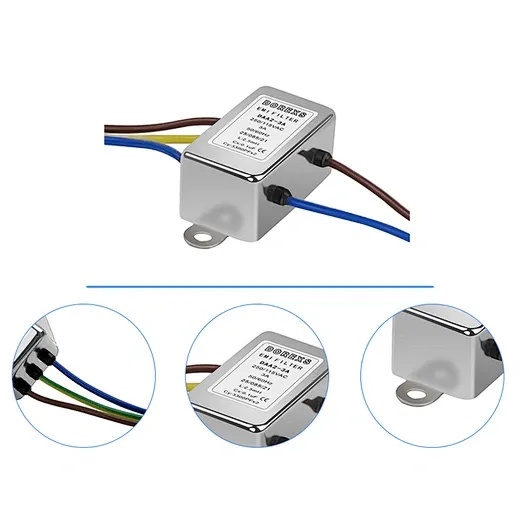

Detail Picture

DAA2 Detail Picture

Overall Dimension（±1mm)

DAA2 Overall Dimension（±1mm)
The cable length and interface type can be customized according to customer needs.

Circuit Diagram

DAA2 Circuit Diagram

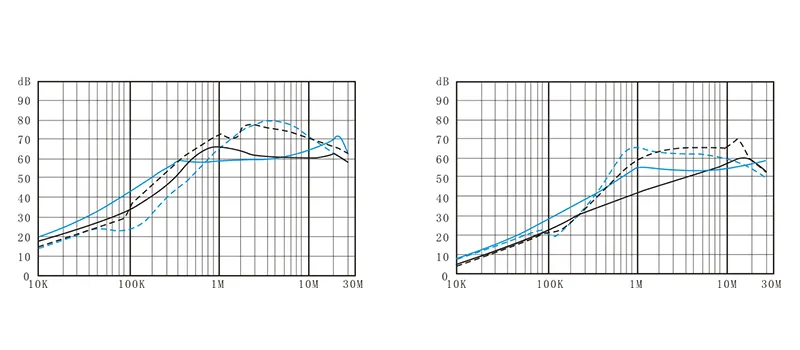

Insertion Loss Curve


DAA2 Insertion Loss Curve



Approvals and Compliances

Approvals and Compliances
The DAA2-Line series of single-phase EMI noise filters comply with IEC/EN 60939, UL, CE, and RoHS electromagnetic interference suppression filter standards. A medical-grade version compliant with IEC 60601 equipment leakage current standards is also available.

Applications

  • Lighting equipment
  • LED drivers
  • Industrial and architectural lighting
  • Consumer appliances.
This product is particularly suitable for applications requiring small size, good interference suppression, and flexible installation.

Installation Instructions

  • Connect the DAA2-Line filter in series with the power line to ensure effective filtering of high-frequency noise.
  • If using a cable connection, keep the cable as short as possible to reduce additional parasitic inductance.
  • Pin-mount (6.3 × 0.8 mm) filters should be installed using the correct type of socket or pad.
  • Ensure good grounding — good grounding is critical for suppressing common-mode interference.
  • Avoid running the filter cable parallel to high-frequency sensitive signal lines to prevent interference coupling.

DOREXS offers more EMI line filter options, please contact us.
