Model No: DADP2

DADP2 1-10A 24V-100VDC DC PCB Filter

Rated Voltage：24-100VDC

PIN design

Small size, strong filtering effect

Specifically designed to suppress DC power supply noise

Can be customize according to customer requirements.

Support free samples

Delivery :

FOB

minimum order :

500 pieces

Supply Ability :

10000pieces / Day

Stock Time :

3-7Day

Country of Origin :

China

Quantity :

Contact Now

DOREXS has a large selection of off-the-shelf standard DC PCB filters that are compact, quick and easy to install, and rated from 1A-10A. We also offer custom DC PCB filters to suit special environments.
DOREXS’s DADP2-1-10A 24V–100VDC DC PCB filter is designed to effectively suppress electromagnetic interference in DC power systems. Its compact PIN design makes it ideal for integration into space-constrained applications such as LED drivers, industrial controllers, and communication equipment.

Features

Rated current up to 10A
Rated voltage: 24–100VDC
PIN pin design, easy PCB integration
DC PCB filter can filter out interference signals within a specific frequency range to maintain normal operation of the circuit.
High-performance EMI suppression
Enhance the stability and reliability of the entire power system.
Suitable for various DC applications
Customized versions of appearance and parameters can be provided upon request

Technical Specifications

Specification

Details

Model：

DADP2

Application：

Commercial/Industrial/Consumer Appliances

Phase：

Structure：

Single-stage

Max operating voltage：

12-100VDC

Rated Current：

1A-10A

Leakage Current：

≤ 0.5mA

Withstand voltage level：

200VDC

Frequency Range：

Operating Temperature：

-25°C ~ +85°C

Certifications：

UL, CQC, CE

Dimensions (mm)：

26 ×26 × 21 (W×H×D)

Weight(g)：

Connection Type：

Product Pictures

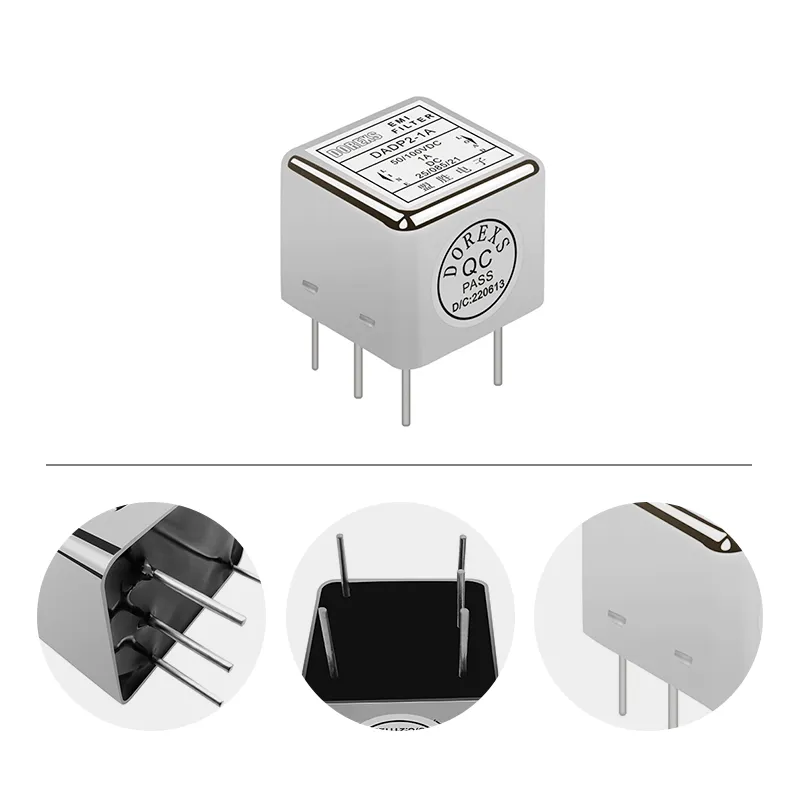

Detail Picture

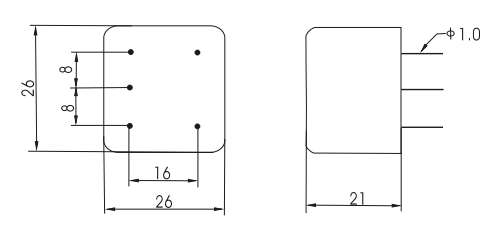

Overall Dimension（±1mm)

Designed for easy PCB integration, the DADP2-1-10A DC PCB filter features a standard pin configuration that is compatible with most DC power supply layouts. Its compact size minimizes the impact on board space.

Circuit Diagram

Customization Options

Cable length and interface type can be customized according to customer needs. DOREXS can also customize DC EMI filter parameters and appearance dimensions according to customer equipment requirements. At DOREXS, everything is based on customer requirements and we are committed to creating exclusive EMI solutions for customers.

Approvals and Compliances

Applications

LED lighting systems
Medical devices
Battery-powered systems
Communication equipment
Industrial control systems
Consumer electronics

DOREXS offers more DC PCB Filter options, please contact us.
