DEA4-10A-GD terminal block guide rail buckle EMI filter

Model No: DEA4-10A-GD

DEA4-10A-GD terminal block guide rail buckle EMI filter

Terminal block guide rail buckle

Single phase, Two stage

High performance

UL、CE、ROHS

Customization

Quantity :

Contact Now

Efficient EMI solution - DEA4-10A-GD - reliable and stable installation method

DEA4-10A-GD terminal block rail clip-on EMI filter is a filter designed for modern industrial environments. The terminal block wiring and DIN rail clip-on installation structure greatly improve the installation efficiency, installation stability and field wiring efficiency, which is very suitable for industrial environments.
At the same time, DEA4-10A-GD adopts a two-stage filter circuit design, which has excellent common-mode and differential-mode interference suppression capabilities, providing strong electromagnetic compatibility protection for industrial sensitive equipment.

Key Features

Adopting double-stage filter design, it has strong anti-interference ability.
Terminal block wiring structure: simple and reliable, convenient for maintenance and replacement, and improves the efficiency of on-site wiring of industrial automation.
Clip-on DIN rail installation: standard 35mm rail adaptation, quick clip fixation, saving installation time and space.
Compact and sturdy design: suitable for high-density electric control cabinet installation, stable and durable, meeting the requirements of harsh working conditions.
Multiple connection methods such as rails, bolts, and terminal blocks ensure stable installation.
There are a variety of configurations to choose from to adapt to different rated voltages, current levels and application requirements.
Low leakage current.
Support parameter and appearance customization.

Technical Specifications

Specification

Details

Model：

DEA4-10A-GD

Application：

Industrial / Commercial

Phase：

Single-phase

Structure：

Two-stage

Max operating voltage：

275VAC

Rated Current：

3A - 20A

Leakage Current：

≤ 0.5mA

Withstand voltage level：

2150VAC

Frequency Range：

50/60Hz

Operating Temperature：

-25°C ~ +85°C

Certifications：

UL, CQC, CE

Dimensions (mm)：

63× 51 × 30 (W×H×D)

Weight(g)：

200

Connection Type：

Bolt/Insert/Power cord

Product Pictures

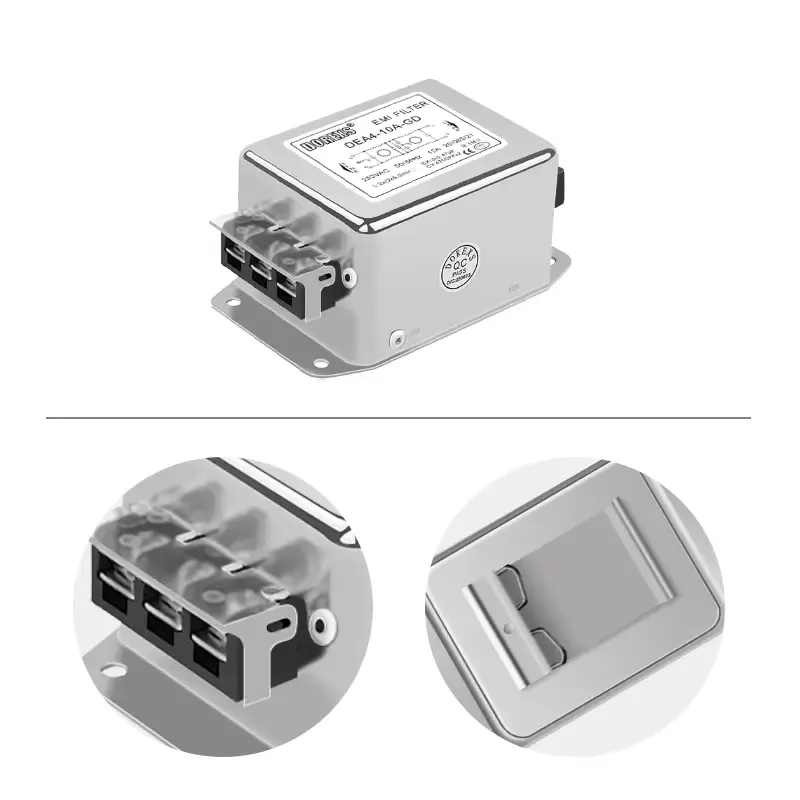

Detail Picture

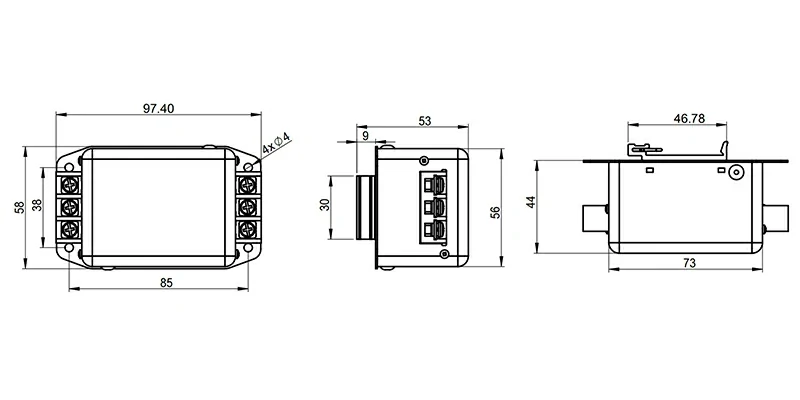

Overall Dimension（±1mm)

Circuit Diagram

Customization Options

Cable length and interface type can be customized according to customer needs. DOREXS can also customize EMI filter parameters and appearance dimensions according to customer equipment requirements. At DOREXS, everything is based on customer requirements and we are committed to creating exclusive EMI solutions for customers.

Approvals and Compliances

Applications

Industrial automation equipment
Precision instruments and measurement systems
Power control and distribution systems
Communication and network equipment
Medical and laboratory equipment

DOREXS offers more terminal block guide rail buckle EMI filter options, please contact us.
