Model No: DOREXS 10A 3 Phase EMI Filter
DOREXS Three Phase EMI Filter 10A for Industrial EMC Applications
Industrial-Grade Three Phase EMI Filter 10A
Reliable Conducted EMI Suppression for Industrial Automation, Servo Drives, Inverters, UPS Systems and Power Equipment
✓ Rated Current: 10A
✓ Rated Voltage: 380VAC / 440VAC
✓ High Insertion Loss
✓ Compact Metal Housing
✓ CE & RoHS Certified
✓ OEM & ODM Available
Reliable Conducted EMI Suppression for Industrial Automation, Servo Drives, Inverters, UPS Systems and Power Equipment
✓ Rated Current: 10A
✓ Rated Voltage: 380VAC / 440VAC
✓ High Insertion Loss
✓ Compact Metal Housing
✓ CE & RoHS Certified
✓ OEM & ODM Available
Quantity :
Subscribe to our Newsletter
Superior Power Line Noise Suppression for Industrial Three Phase Systems
Our 10A three phase EMI filter eliminates conducted electromagnetic interference from your industrial power lines, delivering clean, stable power to sensitive equipment without affecting normal operation. EMI filters reduce conducted electromagnetic interference in power systems, and this unit is purpose-built for three phase industrial environments where power line noise from switching devices, motor drives, and non-linear loads threatens equipment performance and electromagnetic compatibility compliance. The result: your VFDs, PLCs, and control electronics operate reliably, your facility passes EMC testing, and your production stays on track.
Why Choose DOREXS Three Phase EMI Filters
Industrial EMC Performance You Can Trust
Unlike general-purpose power filters, DOREXS industrial EMI filters are specifically engineered for harsh industrial environments.
Advantages include:
- Excellent common-mode and differential-mode attenuation
- Stable filtering performance across a wide frequency range
- Compact metal enclosure
- High reliability under continuous industrial operation
- Easy installation inside electrical cabinets
- Wide current range from 6A to 200A
- Low leakage current options available
- OEM and ODM customization support
- Global export experience
- CE, RoHS and ISO9001 certified manufacturin
Key Feature
| ✔ Excellent EMI Attenuation Performance | ✔ Proven EMC Compliance | ✔ Enhanced Equipment Protection |
| This emi power line filter suppresses both common-mode and differential-mode noise across the operational frequency range from 150 kHz to 30 MHz, eliminating the power line noise that disrupts sensitive industrial equipment and causes data errors or signal corruption. | Helps your installation meet international standards including IEC 61000 and EN 50370-1. EMI filters are essential for compliance with EMC standards, and this unit is designed to align with recognized certifications so your equipment passes conducted emission testing. | By preventing conducted noise from entering sensitive machinery, this filter extends the lifespan of VFDs, servo drives, and motor control systems. Electromagnetic interference filters are critical for preventing noise in industrial automation systems, and this product delivers that protection at the 10A current rating. |
| ✔ Robust Industrial Construction | ✔ Easy Installation Process | ✔ High Insertion Loss |
| Built with high performance materials and designed for harsh environments, the housing withstands vibration, humidity, and temperature extremes. The operating temperature range of −25°C to +85°C ensures stability in demanding installations. | Standard mounting configurations and clearly marked connection terminals make setup straightforward. This is the easy way to add conducted EMI suppression to your three phase power system without extensive rewiring or downtime. | Optimized LC filtering network provides excellent attenuation across both common-mode and differential-mode frequencies. |
| ✔ Wide Voltage Compatibility | ✔ Long Service Life | ✔ Flexible OEM Customization |
| Suitable for 380VAC, 400VAC and 440VAC three-phase power systems. | Industrial-grade components provide excellent thermal stability and long operational life. | Support for customized electrical specifications, terminal types, mounting methods and attenuation requirements. |
Technical Specifications
Parameter | Specification |
| Product Type： | Three phase EMI filter(single-stage/Multi-stage) |
| Rated Current： | 10A continuous operation - the EMI filter rated current is 10A for industrial use. Note that rated current for three phase EMI filters in the broader C Series product line can reach 1000A for higher-power installations. |
| Rated Voltage： | 380/440V AC - operating voltage ratings can be up to 440V AC, suitable for standard industrial three phase supply systems. |
| Frequency: | 50/60 Hz |
| Configuration: | 3-phase 3-wire or 4-wire options available |
| Attenuation Performance: | High suppression from 150 kHz to 30 MHz frequency range - common mode interference has a large range and high frequency, while differential mode interference transmits between two wires |
| Leakage Current (Medical): | ≤ 0.1 mA (optional variant) |
| Low Leakage Current: | Optimized capacitor configuration minimizes leakage current to ground for safe operation in sensitive installations |
| Operating Temperature: | −25°C to +85°C for demanding industrial environments |
| Connection Type： | Terminal block or threaded stud mounting options |
| Construction: | Robust metal housing with corrosion-resistant finish |
| Certifications: | CE, RoHS compliant |
Product details are subject to confirmation based on your specific configuration requirements. Contact our team to confirm specifications for your application.
Product Pictures
Detail Picture
 |  |  |

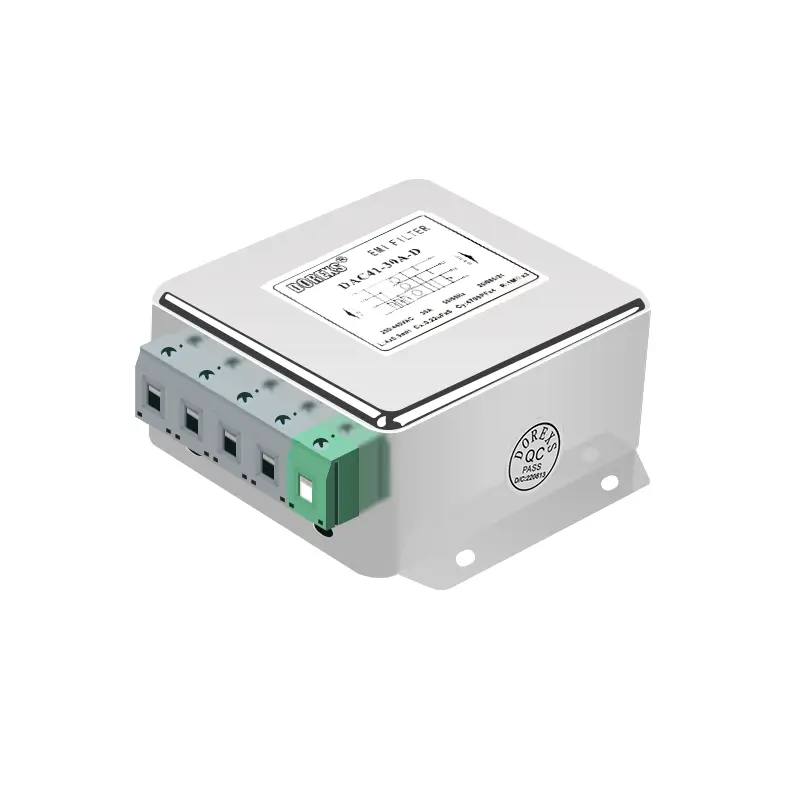

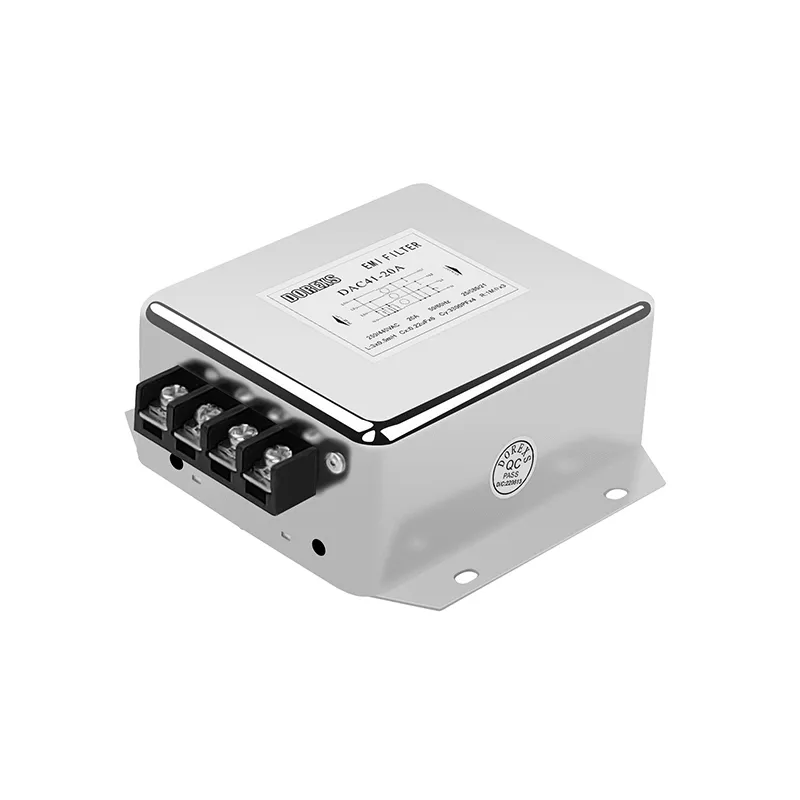

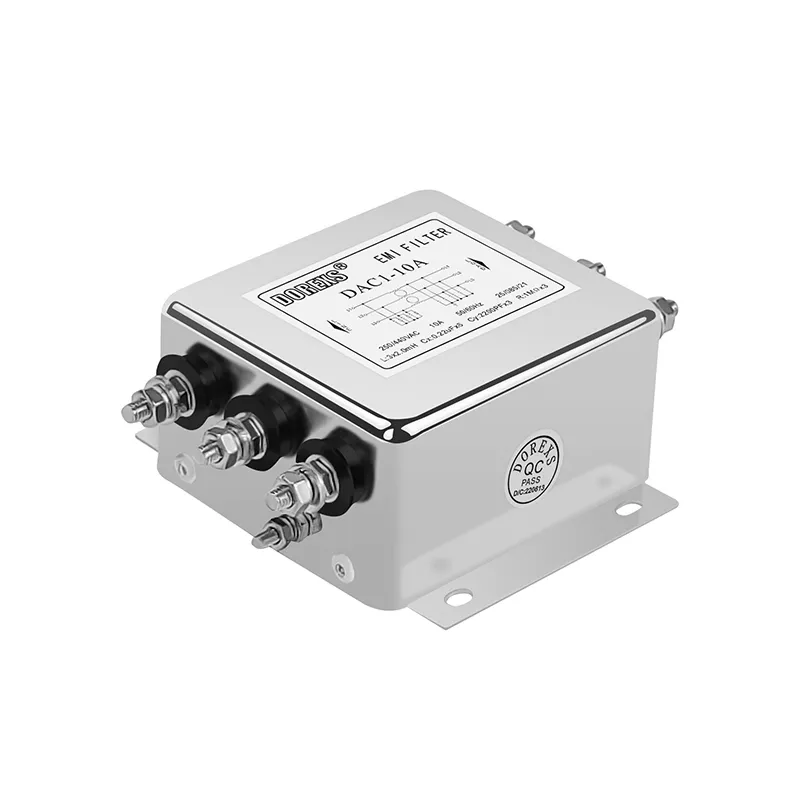

| DAC1-10A | DAC3-10A | DAC41-10A |

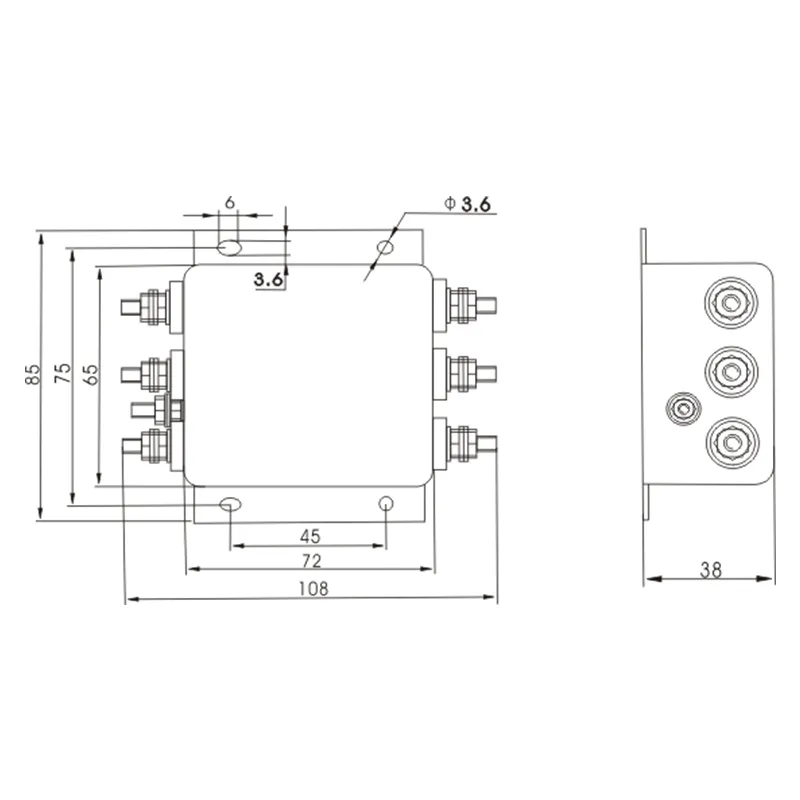

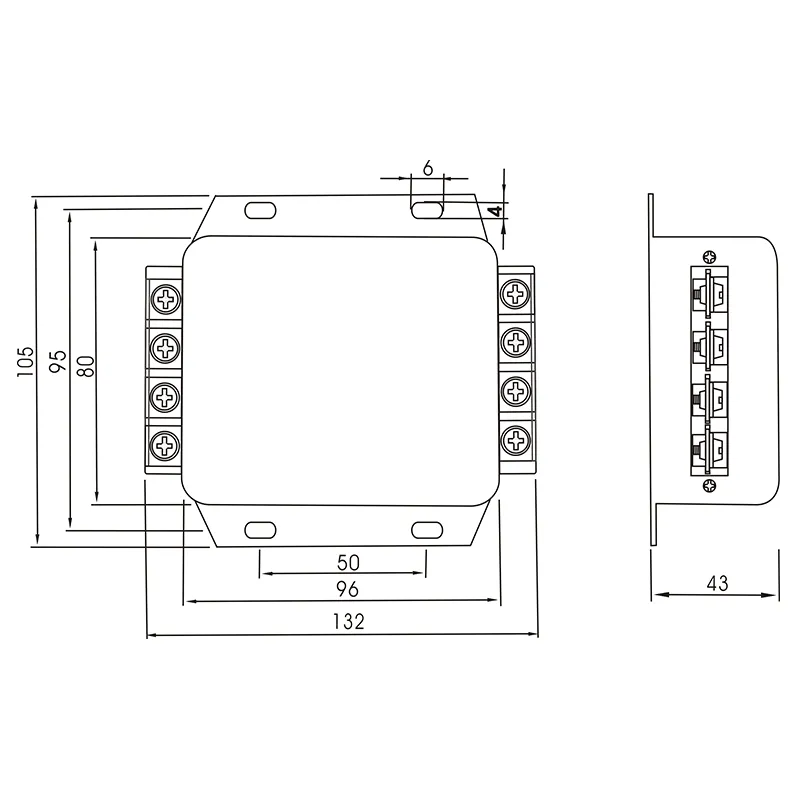

Overall Dimension（±1mm)
 |  | |
| Threaded stud | Screw Terminal |

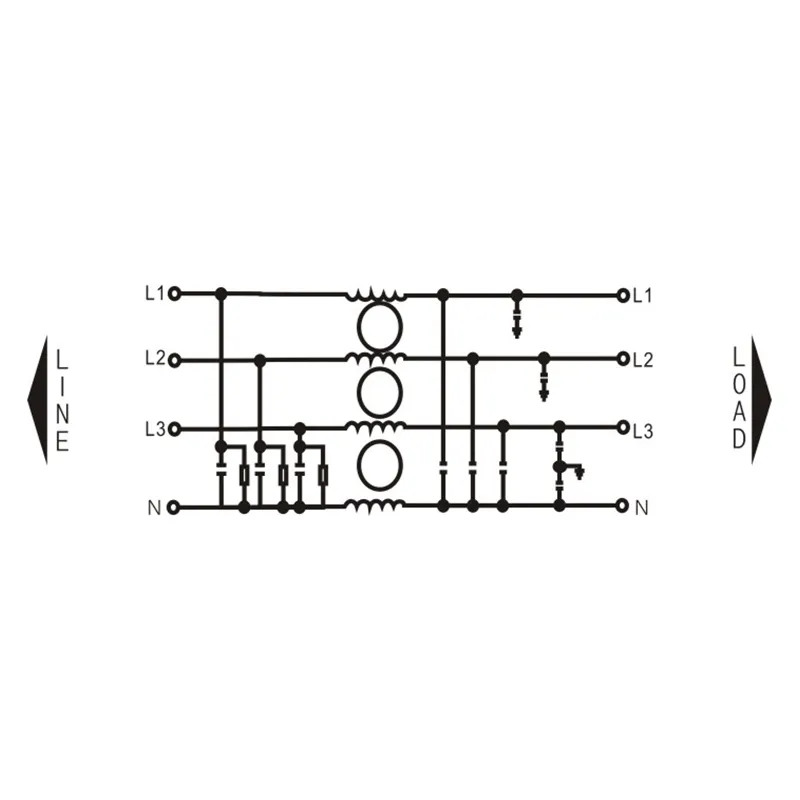

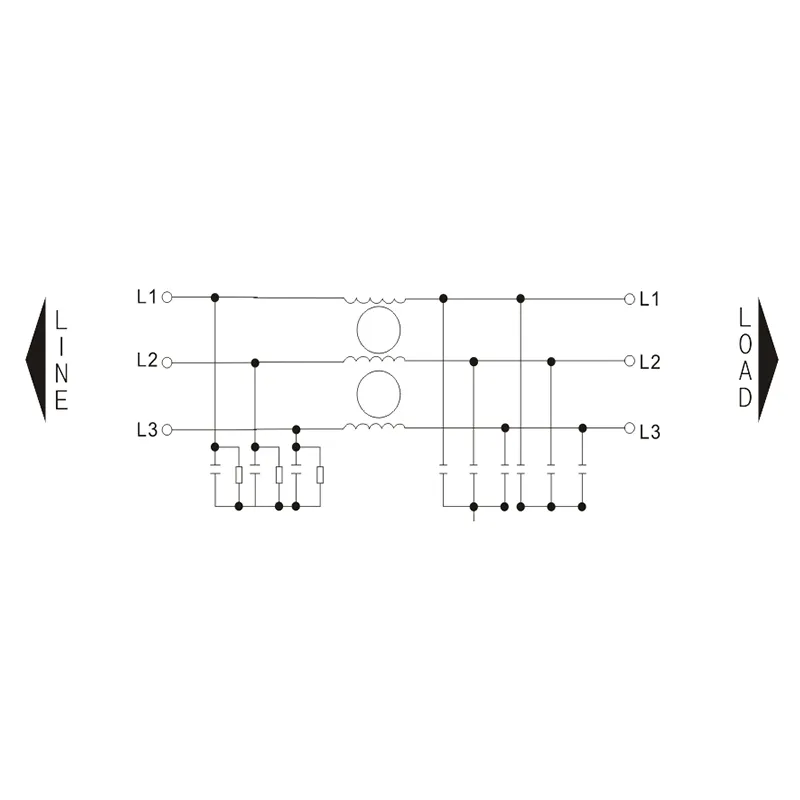

Circuit Diagram
 |  | |
Two stage | Multi-stage |
Ideal Applications
This three phase EMI filter is designed for industrial systems where a 10A current rating matches the load profile and conducted EMI must be controlled:
- Variable Frequency Drives (VFDs) and Motor Control Systems – They are used in variable frequency drives and industrial automation, where switching transitions generate significant common-mode and differential-mode noise that feeds back into the power line
- Industrial Automation Equipment and Packaging Machinery – Protect PLCs, sensors, and communication buses from power line noise generated by nearby switching loads
- CNC Machine Tools and Precision Manufacturing Equipment – Prevent interference from affecting positioning accuracy, tool control signals, and data integrity
- HVAC Systems and Industrial Air Conditioning Units – Ensure reliable compressor motor operation and protect building management system electronics
- Textile Machinery and Processing Equipment – Suppress EMI from multiple motor drives operating simultaneously on shared power lines
If your three phase system draws up to 10A and requires electromagnetic compatibility compliance, this emi filter fits your needs. For higher current requirements, review our full three phase EMI filter range.

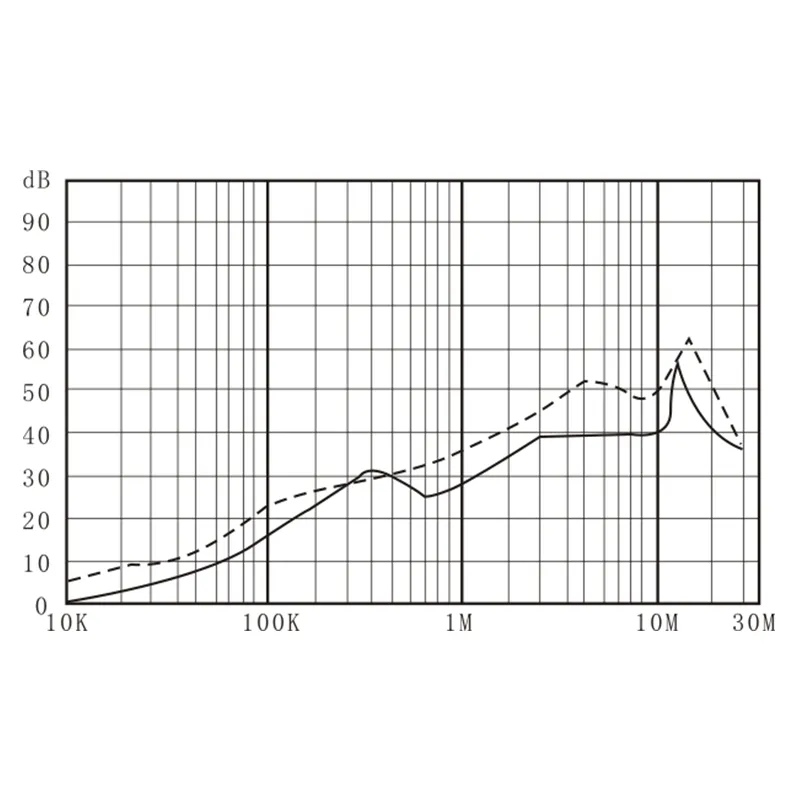

Insertion Loss Performance
The DOREXS three phase EMI filter 10A is engineered to provide stable insertion loss performance against both:
- Common Mode Noise Reduction-Helps suppress interference transmitted between line conductors and ground.
- Differential Mode Noise Reduction-Reduces noise generated directly across power conductors.
Mechanical Design
This filter supports compact panel integration for industrial systems.
Installation recommendations:
- Install close to power entry points
- Minimize cable loop area
- Separate input and output wiring
- Ensure proper grounding connection
- Avoid parallel routing of noisy cables
Correct installation significantly improves EMC suppression performance.
Certifications & Compliance
DOREXS Three phase EMI filters are manufactured under rigorous quality control processes to meet international EMC standards.
Compliance support provided includes:
- CE compliance
- RoHS compliance
- EMC testing support
- ISO 9001 certification
- Industrial quality management
- OEM documentation support
Custom EMI Filter Solutions
As a professional Three phase EMI filter manufacturer, DOREXS provides OEM and ODM EMI filter solutions tailored to specific EMC requirements.
Customization options include:
- Current Rating Adjustment
- Low Leakage Current Design
- Terminal Configuration
- Mounting Structure
- Enhanced Attenuation Performance
- Medical Grade Design
- High Reliability Industrial Design
Our engineering team can assist with EMC troubleshooting, filter selection, and custom filter development for demanding industrial applications.
Why Choose DOREXS?
Professional EMI Filter Manufacturer Since 2008
DOREXS focuses exclusively on electromagnetic compatibility products and industrial power filtering solutions.
We provide:
- Independent R&D
- Advanced production lines
- Strict quality inspection
- Experienced EMC engineering support
- Fast OEM development
- Stable production capacity
- Global technical support
Products are exported to Europe, North America, South America, Southeast Asia and other international markets.
Custom Design Support
OEM and ODM projects supported according to customer specifications.
Quality Assurance
Manufactured under strict quality management processes with international compliance standards.
Global Customer Support
Technical assistance available for equipment manufacturers, system integrators, and industrial OEM customers worldwide.
Ready to Improve Your EMC Performance?
Stop dealing with electromagnetic interference disrupting your industrial equipment and failing EMC compliance tests. Three phase EMI filters reduce conducted electromagnetic interference, and the DOREXS 10A unit delivers that solution with the performance, build quality, and technical support your installation demands.
Choose DOREXS Three Phase EMI Filter 10A and experience reliable power line noise suppression backed by direct manufacturer expertise.
Contact our technical team to discuss your application, request a review of your EMC requirements, or place your order. Add this item to your cart with confidence-engineering support, fast delivery, and quality assurance are included with every unit we sell.
Secure checkout. Direct manufacturer payment. Satisfaction guaranteed.
Choose DOREXS Three Phase EMI Filter 10A and experience reliable power line noise suppression backed by direct manufacturer expertise.
Contact our technical team to discuss your application, request a review of your EMC requirements, or place your order. Add this item to your cart with confidence-engineering support, fast delivery, and quality assurance are included with every unit we sell.
Secure checkout. Direct manufacturer payment. Satisfaction guaranteed.
FAQ
How Our 10A Three Phase EMI Filter Works
- Simple Installation Mount the filter between the power source and your equipment using standard electrical connections. Filters must be installed close to the source of electrical noise for optimal performance-position the unit as near to the noise-generating equipment as possible and ensure a solid, low-impedance ground connection.
- Active Filtering Internal series inductors present high impedance to high-frequency noise on all three phases, while shunt capacitors divert unwanted currents away from your equipment. Common-mode noise appears as the same unwanted signal on all three phases relative to earth, and the common-mode choke addresses this directly. Differential-mode noise exists between the phases of the filter and is suppressed by line-to-line capacitors and individual phase inductors. The filter operates passively-no external power required.
- Clean Power Delivery Your equipment receives filtered AC power with significantly reduced electromagnetic interference. The mains frequency (50/60 Hz) passes through with minimal voltage drop or power loss, while conducted noise across the 150 kHz to 30 MHz range is attenuated. The result is improved EMC performance in your industrial automation applications and protection for downstream electronics.
Why choose a 10A Three Phase EMI Filter?
A 10A model is ideal for low- to medium-power industrial equipment such as servo drives, VFDs, automation systems, and machine tools requiring reliable EMI suppression.
Is it compatible with both 3-wire and 4-wire three phase systems?
Yes. DOREXS offers configurations for both delta (3-wire) and wye (4-wire) connections to match your system requirements. The choice affects capacitor arrangement and leakage current characteristics-our team can help you choose the right configuration.
How long does delivery typically take?
Standard models in stock ship within 8–12 days to your shipping address. Custom configurations-including specific capacitor values, modified attenuation profiles, or non-standard mounting-are typically available in 3–4 weeks. Shipping fee and total price depend on quantity, country of arrival, and shipment method. Contact us to confirm delivery timelines and purchase options for your order.
What if the filter doesn't meet my EMC requirements?
Our engineering team provides pre-installation EMC consulting and post-installation support to ensure compliance. If a standard unit proves unable to achieve required attenuation, we can engineer a custom solution or add supplementary filtering stages. We stand behind our products with a warranty and customer satisfaction commitment.
Can you customize the filter for specific applications?
Absolutely. DOREXS specializes in custom EMI filter solutions based on your exact current, voltage, and EMC requirements. Submit your specifications or EMC test data, and our engineers will design a filter that addresses your specific noise profile. Proper installation of EMI filters is essential for effective noise suppression, and we provide detailed guidance for every custom unit.
Do you accept returns?
Standard product returns are eligible within the specified return period. Custom-engineered items may be subject to different withdrawal terms. Contact us for full details on our refund policy-we work to ensure every customer is satisfied with their purchase.
