JBK 500-1120V Control Transformer

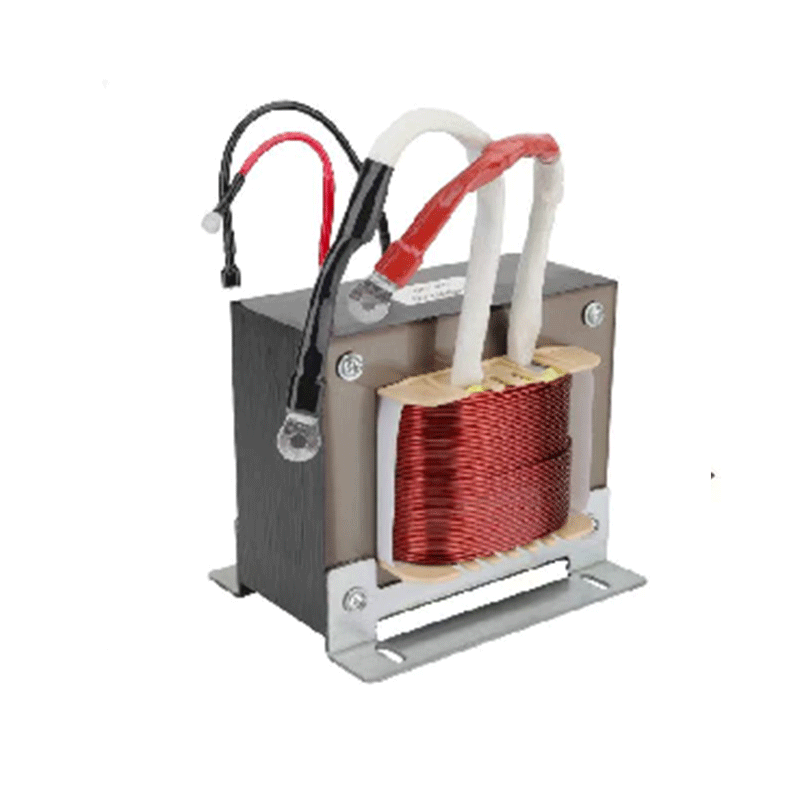

	DBK single-phase high current control transformer
	Certification: CE、Rohs
	IP CODE: IP00
	Insulation: class B



DBK series single phase low voltage and high current control transformer is a new generation transformer independently designed, developed and manufactured according to current market information. It is widely used in industrial equipment, with a rated frequency of 50/60Hz and a power supply voltage not exceeding 500V, providing low voltage and high current for the equipment.



Operating environment

1. When the ambient temperature is between -5℃ and 40℃ and the monthly average temperature does not exceed 30℃, it can work uninterruptedly for a long time;
2. The installation location is not more than 1000 meters above sea level.

---

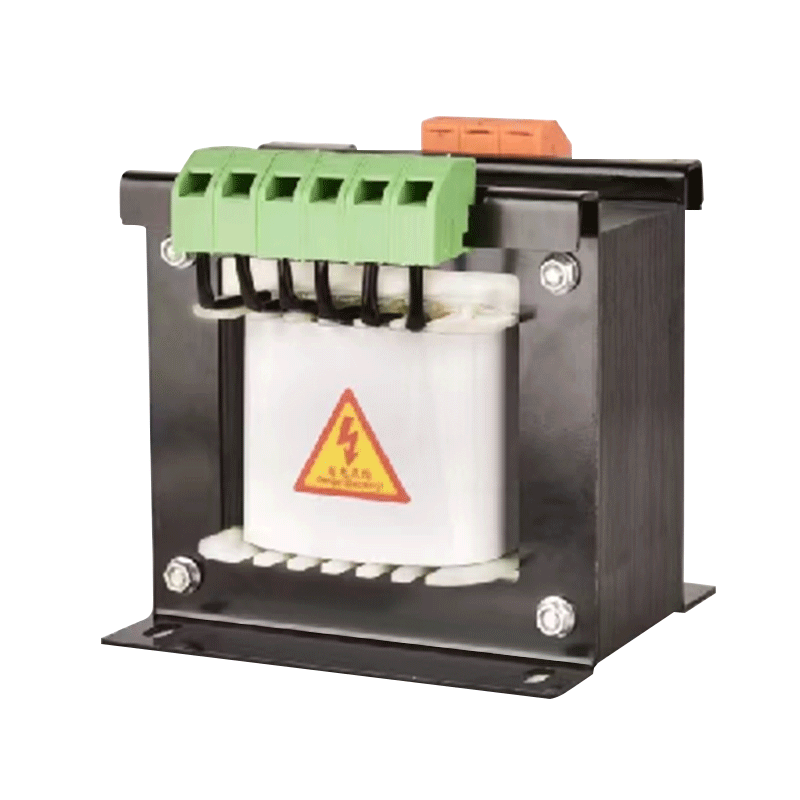

	JBK3 series control transformer
	Certification: CE、Rohs
	IP CODE: IP20
	Insulation: class B



Shape and Installation Dimensions

Technical Parameters

Model	VA	Length B	Width D	Height E	Hole Distance A	Hole Distance C	Hole Distance K	F Max
JBK3-40/63	40-63	78	72	89	56±0.4	51±2	4.8	2
JBK3-100	100	84	85	94	64±0.4	66±2	4.8	2
JBK3-160	160	96	92	109	84±0.4	73±2	5.8	2
JBK3-250	250	96	105	109	84±0.4	87±2	5.8	2
JBK3-400	400	120	109	123	90±0.4	90±2	7	2.5
JBK3-630	630	150	112	150	122±0.5	90±2	6	2.5
JBK3-1000	1000	160	195	151	130±2	152±2	7	3
JBK3-1600	1600	170	225	163	144±2	176±2	7	3
JBK3-2500	2500	200	250	171	170±2	200±2	7	4

---

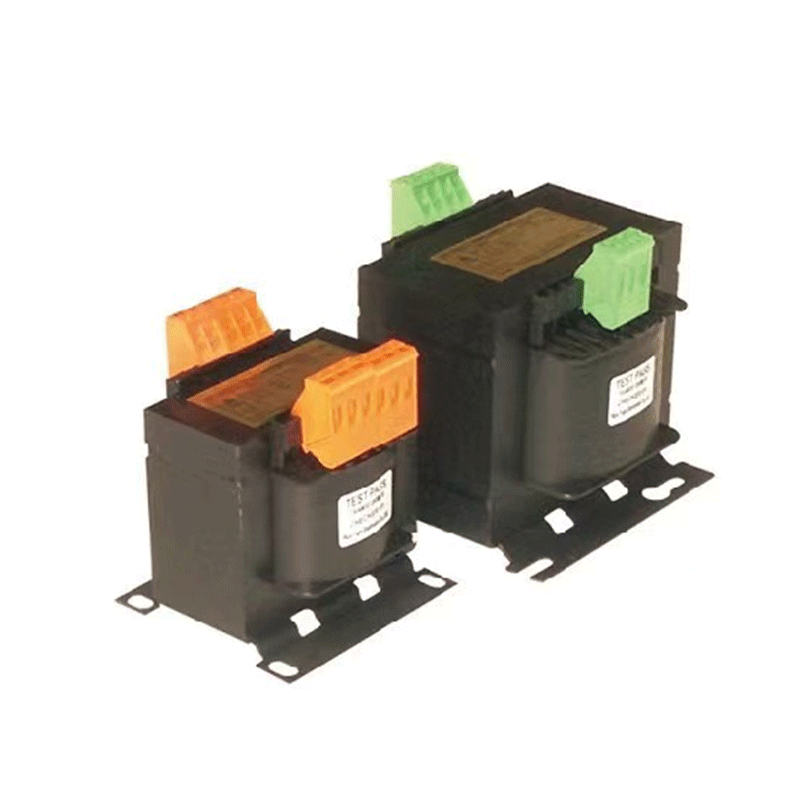

	JBK5 series control transformer
	Certification: CE、Rohs
	IP CODE: IP20
	Insulation: class B

The JBK5 series control transformer is the latest control transformer series introduced by our company from Germany in the mid-1990s. Based on the domestic JBK3 series control transformer, after years of further absorbing similar foreign products, the terminal structure of foreign advanced methods is selected, and the terminal and the frame are combined to increase the protection level to IP2LX to prevent accidental contact with the circuit. The domestic T cold-pressed terminal is adopted, and the wiring method can increase the density of wiring.
The connection between the silicon steel sheets of the transformer and the connection between the silicon steel sheets and the bottom plate are all welded by argon arc welding to form a whole, which is simple and clear. In particular, the bottom plate is formed in one go, and the installation size is more convenient than the JBK3 series. The use of high-quality anti-corrosion alloy materials greatly improves the reliability of grounding performance and comprehensively improves product quality. This product complies with relevant international and national standards such as VDE0550, IEC204-1, IEC439, JB5555, GB5226, and has won the European Community"CE"certification, which can be used interchangeably with foreign products.
JBK5 series control transformers are suitable for AC 50/60Hz, input voltage not exceeding 1120V, and output rated voltage not exceeding 1120V. They are used as power supplies for mechanical equipment in various industries, general electrical control power supplies, and working and signal lights.

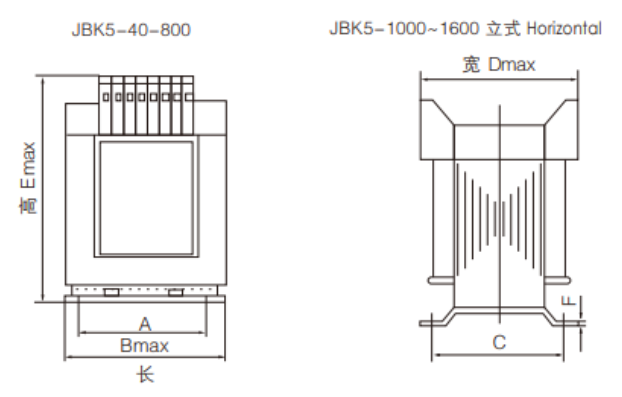

Shape and Installation Dimensions



Technical Parameters

Model	VA	Efficiency (%)	Load output voltage		Unload output voltage		Rated input voltage	Rated output voltage	Remarks
			signal winding	control winding	signal winding	control winding
JBK5-40	40	80	6≥Um>5 12≥Um>10	95%-105% UH	6 or 12	1.1 Um	AC 380V ±5%           AC 220V ±5%	Contorl: AC 220V、127V、110V     Light or contorl: 48V、35V、24 V     Signal: 12V、6V	The capacity distribution of each winding can be customized according to customer requirements
JBK5-63	63
JBK5-100	100
JBK5-160	160	85
JBK5-250	250
JBK5-400	400
JBK5-630	630
JBK5-800	800	90
JBK5-1000	1000
JBK5-1600	1600		6≥Um>4.5 12≥Um>9
JBK5-2500	2500
JBK5-3000	3000		12.8≥Um>9.6 13.5≥Um>10
JBK5-4000	4000
JBK5-5000	5000	90	15.2≥Um>11				0-380V or 0-220V without 5%
JBK5-6000	6000
JBK5-7000	7000
JBK5-8000	8000
JBK5-10000	10000
JBK5-15KVA	15000
JBK5-20KVA	20000
JBK5-30KVA	30000
JBK5-40KVA	40000
JBK5-50KVA	50000
JBK5-60KVA	60000

Single-phase control transformers play an important role in daily life and industrial production, ensuring that electrical equipment can operate safely at appropriate voltages.

DOREXS offers more control transformer options, please contact us for a quote.
