What Is EMC? Electromagnetic Compatibility Explained

Electronic systems surround us—from mobile phones in our pockets to the control units managing aircraft systems. Every one of these devices generates some level of electromagnetic energy, and every one of them must coexist without disrupting the others. This is where electromagnetic compatibility becomes essential. Understanding EMC is the first step toward building reliable products that pass regulatory testing and perform flawlessly in real-world environments.

What Is EMC? (Fast Answer)

Electromagnetic compatibility (EMC) is defined as the ability of equipment or a system to function satisfactorily in its electromagnetic environment without introducing intolerable electromagnetic disturbances to anything in that environment. This dual requirement means a product must limit its own electromagnetic emissions while simultaneously resisting external interference from other devices in the same environment.

EMC differs fundamentally from electromagnetic interference (EMI). While EMC represents the broader engineering discipline of achieving coexistence, EMI refers specifically to the actual unwanted electromagnetic disturbance causing signal degradation or malfunction. EMC ensures that electrical devices and systems operate as intended in their electromagnetic environment by minimizing unintentional electromagnetic interference (EMI). Think of EMC as the goal and EMI as the problem to solve.

Typical products requiring careful EMC attention span nearly every sector: consumer electronics like smartphones and audio equipment, industrial controllers including PLCs and variable frequency drives, automotive ECUs managing engine timing and safety systems, aerospace avionics in aircraft and satellites, medical devices such as MRI machines and pacemakers operating in EMI-dense hospital environments, and telecom infrastructure like 5G base stations and routers. Achieving electromagnetic compatibility involves controlling emissions through design and filtering, ensuring immunity via robust layouts and protection components, and validating performance through mandatory compliance testing against international standards. DOREXS provides integrated EMC solutions including pre-compliance test setups, consulting services, and equipment to guide companies from design review to market-ready certification, leveraging its role as a global supplier of EMI filters and EMC solutions.

History and Evolution of EMC

The story of electromagnetic compatibility traces back to the earliest days of radio communication, when engineers first discovered that electronic and electromechanical devices could disrupt each other in unexpected ways. What began as isolated interference problems has evolved into a comprehensive engineering discipline affecting every electronic device manufactured today.

The late 19th century witnessed Guglielmo Marconi’s pioneering radio experiments around 1895-1901, where spark-gap transmitters generated broadband interference that disrupted telegraph and telephone lines. This early awareness of electromagnetic disturbance in shared environments planted the seeds for what would become formal EMC engineering.

By the 1920s through 1950s, broadcast radio exploded alongside domestic appliances like vacuum cleaners with universal motors, refrigerators, and light dimmers. These devices created switching transients and arcing contacts that caused widespread receiver desensitization. This spurred the first national regulations, including the U.S. Federal Radio Commission’s rules on radio interference and the UK’s Wireless Telegraphy Act amendments requiring suppression devices on noisy circuits.

Mid-century brought critical safety concerns from electrostatic discharge and spark-induced explosions in coal mines, fuel depots, and facilities using nuclear technology. By the 1940s-1950s, intrinsically safe equipment standards emerged, including U.S. Bureau of Mines approvals for mining tools with limited energy storage to prevent ignition from electrical currents.

The 1960s through 1980s marked a pivotal shift with transistorized electronics, early computing from IBM mainframes, and switching power supplies replacing linear designs. These technologies amplified both emissions from clock harmonics and susceptibility in digital circuitry. This era birthed formal military standards like MIL-STD-461 (first issued 1967) for defense and military devices, mandating controlled emissions and immunity in harsh electromagnetic environments and driving demand for specialized military EMI filters and Tempest-grade EMC solutions.

Civilian milestones followed with the 1989 EU EMC Directive (89/336/EEC), consolidating national laws into mandatory requirements under the European Commission framework. This was superseded by 2004/108/EC and the current EMC Directive 2014/30/EU, integrating essential requirements for emissions and electromagnetic immunity. Modern challenges from USB 3.x (up to 10 Gbps), HDMI, Ethernet at 1-10 Gbit/s, EV powertrains with SiC/GaN inverters, and 5G NR base stations have tightened EMC requirements worldwide. DOREXS EMC solutions are specifically optimized for these dense, high-speed, multi-radio product environments.

Technical Characteristics of Electromagnetic Interference

EMI represents the unwanted electromagnetic disturbance threatening EMC, characterized across time, frequency, and amplitude domains. High-frequency devices are a significant source of electromagnetic interference (EMI) because they generate rapid changes in electrical currents, which radiate electromagnetic waves. Understanding these characteristics guides measurement strategies and mitigation approaches.

Continuous EMI includes periodic signals like clock harmonics from digital circuits—a 100 MHz CPU clock produces odd harmonics extending into the GHz range. Power generation and distribution systems produce significant EMI due to their high current flow and switching characteristics, affecting both power-sensitive analog devices and digital circuits. Transient EMI encompasses short bursts like switching spikes with nanosecond rise times in switched-mode power supplies or electrostatic discharge events with peak currents of 8-30 A over 1 nanosecond. Continuous signals appear as discrete spectral lines on spectrum analyzers, while transients require time-domain EMI receivers with peak, average, and quasi-peak detectors.

The control of electromagnetic interference (EMI) and assurance of EMC comprises a series of related disciplines, including understanding coupling paths, emissions testing, and susceptibility testing, often supported by appropriately selected EMI EMC power filter solutions. Narrowband interference occupies less than 1% bandwidth—such as single-frequency RF leaks from oscillators—while broadband interference spans wide spectra from digital edges and switching events. This distinction influences detector selection and filter design.

Key frequency ranges include conducted emissions typically from 150 kHz to 30 MHz (measured via LISNs per CISPR standards), and radiated emissions from 30 MHz to 1 GHz, with modern standards extending to 6 GHz or beyond for IT equipment and communication systems. High-voltage systems are another major source of EMI due to the strong electromagnetic fields they generate, which can disrupt control systems and communication links in industrial and automotive environments.

Real-world examples abound: buck regulators producing 100-500 kHz fundamentals with MHz harmonics affecting AM radio reception, or PCIe Gen4 buses radiating at 8 GT/s edges and disrupting Wi-Fi bands. DOREXS tailors test equipment including fully shielded pre-compliance chambers, LISNs rated up to 50 A/250 VAC, and near-field probes covering 100 kHz to 8 GHz, enabling precise source localization during development.

Types of Electromagnetic Interference

EMI categorizes by origin, duration, and spectral content, with each type requiring specific mitigation techniques. EMC addresses how interference travels through radiated emissions or conducted emissions, making classification essential for targeted solutions.

Man-made sources dominate modern EMC challenges: switching power supplies operating at 65 kHz, DC/DC converters with burst-mode noise from 100 kHz to 10 MHz, Wi-Fi routers transmitting at 2.4/5 GHz, industrial VFDs generating carrier harmonics, and electric motors creating broadband noise from brush arcing. Natural phenomena include lightning electromagnetic pulses delivering broadband pulses from 1 kHz to 100 MHz with peak currents reaching 200 kA, solar coronal mass ejections inducing geomagnetic disturbances, natural lightning strikes, and precipitation static resulting from charged particles.

Continuous wave interference features persistent narrowband signals—13.56 MHz RFID carriers or 2.4 GHz Bluetooth transmissions—requiring notch filters or targeted shielding. Broadband noise arises from aperiodic processes like high-speed digital data buses generating eye pattern jitter across 100 MHz to 5 GHz, or arcing brushes in motors impacting multiple frequency bands simultaneously.

Electromagnetic pulses deliver high-amplitude, short-duration broadband energy. Single events include ESD pulses per IEC 61000-4-2 (±2-8 kV contact/air discharge, rise time under 1 nanosecond) and lightning surges per IEC 61000-4-5 (up to 12 kV/6 kA). Standards also address high altitude electromagnetic pulses, nuclear electromagnetic pulses, and non nuclear electromagnetic pulses for defense and military devices and infrastructure apparatuses. Repetitive pulses from clocked switching shift spectral energy by repetition rate, influencing quasi-peak detector readings.

Conducted EMI propagates via wires—common-mode and differential-mode currents on power and signal lines—while radiated EMI travels via electromagnetic fields. DOREXS design services profile dominant EMI types in customer products, deploying targeted strategies like common-mode chokes for conducted issues or shielded enclosures for radiated problems.

Coupling Mechanisms: How EMI Reaches a Victim

The source-path-victim model underpins all EMC analysis. Controlling the coupling paths is often the most efficient approach—severing the path prevents energy transfer regardless of source strength or victim sensitivity.

Conductive coupling occurs via shared conductors: common-mode currents on power lines, ground traces, or cable shields. Conducted emissions on mains are tested per CISPR 11/32 with limits from 66 to 56 dBµV across 150 kHz to 30 MHz. Grounding directs unwanted electrical noise away from sensitive circuits, while properly filtered properly power supply lines prevent conducted interference from reaching vulnerable electronic circuits.

Capacitive coupling transfers energy via electric fields between adjacent conductors at differing potentials. Typical PCB trace capacitance of 1-100 pF creates crosstalk—parallel USB traces 5 mm apart may show 20 dB coupling at 1 GHz, mitigated through guard traces or increased separation.

Inductive coupling results from changing magnetic fields in current loops. VFD cables spanning 10-100 meters can induce 1-10 V in adjacent sensor cables, while ground loops in audio equipment amplify 50/60 Hz hum at 1-10 mV levels. Loop area reduction is critical for controlling this mechanism.

Radiative coupling dominates in the far-field region beyond approximately λ/2π (about 1 meter at 100 MHz). Mobile phones operating at 900 MHz GSM can affect unshielded medical equipment at 1-3 meter distances, tested in semi-anechoic chambers per IEC 61000-4-3 immunity testing at 3-10 V/m field strength.

Breaking coupling paths employs filtering (π-filters achieving greater than 40 dB attenuation), shielding (greater than 60 dB at seams with gaskets), multi-point grounding for frequencies above 10 MHz, and physical separation following the λ/20 rule. EMC test equipment is structured around these paths: anechoic chambers for radiated testing, GTEM cells for small equipment, and CDN networks for conducted immunity testing. DOREXS designs custom benches targeting specific paths—automotive harness CDNs or IoT module GTEM setups—streamlining pre-compliance workflows.

EMC Compliance and Standards

EMC compliance represents a legal and market-access requirement across global markets, not merely a technical preference. Compliance with EMC standards is a fundamental requirement for any electronic product, as failure to meet these standards can result in product recalls, fines, and damage to a company’s reputation.

To comply with regulations like FCC, IEC, or CISPR, products must undergo EMC testing to ensure safety and functionality. The EU EMC Directive 2014/30/EU requires CE marking through Technical Documentation and a Declaration of Conformity for products entering the European Economic Area. The European Commission enforces these harmonised standards with penalties averaging €20k-50k for non-compliant products.

US frameworks differ in approach. FCC Part 15 addresses unintentional radiators with specific equipment authorization procedures emphasizing radio emissions from electronic systems. Global markets often require products to pass strict EMC testing for safety and compatibility before market entry.

EMC standards follow a hierarchy: basic standards (IEC 61000 series for test methods, CISPR 16 for receivers defining measurement procedures), product-family standards (EN 55032 for IT/multimedia equipment, EN 55011 for industrial devices, CISPR 25 for vehicles), and generic standards (EN 61000-6-1/3/4 covering residential and industrial environments). A technical committee within organizations like IEC/CISPR, CENELEC, ETSI, and ANSI develops these regulatory standards and international standards, reflecting the broader impact, standards and governance of EMI.

Typical test categories include emissions testing (conducted 150 kHz-30 MHz, radiated 30 MHz-6 GHz), immunity testing (RF 80 MHz-6 GHz at 3-10 V/m, ESD ±4-8 kV, EFT 1-4 kV, surge 1-2 kV, voltage dips to 0%), and power frequency magnetic field susceptibility. These tests verify that electrical equipment can operate reliably and function correctly without causing electromagnetic disturbance to other devices.

EMC is vital for safety, reliability, and regulatory compliance of almost all electronic products. Field failures cost 5-10x more than redesign investments, while proper pre-compliance testing reduces time-to-market by 20-30%. DOREXS supports compliance with turnkey pre-compliance chambers, standards guidance for applicable emc regulations, and partnerships with accredited labs for final certification, and invites engineering teams to contact its EMI filter and power quality experts for tailored project support.

Design Strategies and Practical EMC Solutions

Achieving EMC efficiently depends on incorporating good design practices from the earliest concept stages. Proper EMC design prevents critical failures, such as those in medical equipment, data loss, or communication disruptions. Waiting until final testing often means expensive redesigns and schedule delays.

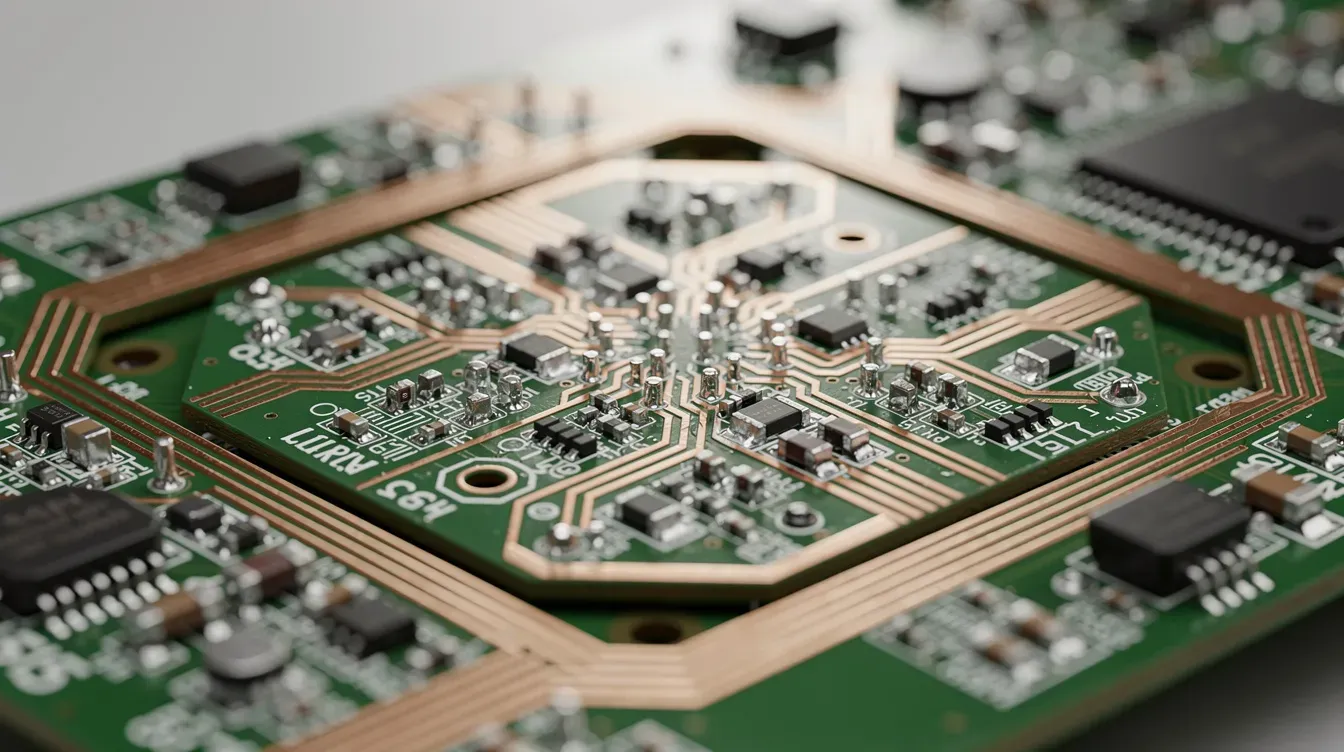

Proper PCB layout is essential for EMC compliance; using a ground plane in multi-layer PCBs can provide consistent grounding and significantly reduce electromagnetic emissions. Engineers should implement 4-6 layer stackups with unbroken ground planes maintaining return path impedance below 1 Ω at 1 GHz. Critical practices include minimizing loop areas to under 1 cm, using differential routing with 100 Ω impedance and length matching within 5 ps skew, placing decoupling capacitors (10-100 nF ceramics plus 1-10 µF tantalum per IC) within 1 mm of supply pins, and segregating noisy digital/power sections from sensitive analog circuits, following effective EMI PCB strategies to minimize interference.

Engineers ensure compatibility through techniques such as shielding, filtering, and grounding. Shielding involves using metal enclosures to block signals—enclosures with fingerstock gaskets maintaining contact resistance below 10 mΩ and seams spaced under λ/20 provide effective containment. Cabling employs twisted pairs reducing loop area by 100x, routing away from sensitive lines, and using shielded cables with greater than 85% braid coverage and 360° termination, all of which are central to understanding EMI radiation sources, effects, and mitigation.

To achieve EMC compliance, manufacturers should implement design strategies such as grounding and shielding, which help minimize electromagnetic interference by providing a low-impedance path for unwanted signals. Multi-point chassis grounding suits broadband frequencies above 1 MHz, while single-point star topology prevents loops at lower frequencies. Common pitfalls include floating shields that capacitively couple common-mode noise and pigtail terminations longer than 5 cm causing 20 dB performance degradation.

Filtering is a critical strategy for EMC compliance, where filters are matched to the frequency range of the interference to effectively reduce unwanted emissions and improve immunity. Filtering adds components to remove unwanted frequencies from power or signal lines. AC input filtering with dedicated AC EMI filters for industrial and electronic equipment combines Y-capacitors (1-10 nF, 250 VAC), X-capacitors (0.1-1 µF), and common-mode chokes (10-100 mH, achieving 40 dB at 150 kHz). Ferrites on DC lines provide 100 Ω impedance at 100 MHz. Filter cutoffs should target 1/10 to 1/20 of the offending frequency to reduce unwanted emissions effectively.

Devices must have high immunity to external interference to prevent malfunctions or data corruption. Immunity design addresses ESD, surge, and fast transients through spacing/clearances of 8 mm for 4 kV ESD protection, transient absorbers like TVS diodes (SMAJ series clamping 8-15 V nanosecond pulses), gas discharge tubes for surge per IEC 61000-4-5, and robust firmware incorporating error correction techniques, CRC checks, and watchdog timers. Achieving electromagnetic compatibility is critical for ensuring device reliability, as poor EMC design can lead to failures in environments filled with various electromagnetic sources.

System-level architecture isolates noisy subsystems—motor drives, RF power amplifiers in power stations, or other devices generating significant emissions—from sensitive circuits like ADC inputs and low-level sensors, which is equally critical when managing EMI and power quality in building environments. DC-DC isolation (1500 Vrms rated) and separate power supply units prevent cross-contamination between domains.

Early EMC simulations using tools like HFSS or SIwave achieve 50-80% prediction accuracy, while pre-compliance testing catches 90% of issues before certification. An EMC compliant product results from iterative design refinement, not last-minute fixes. DOREXS delivers design reviews with comprehensive checklists for CISPR 32 and other standards, pre-compliance test equipment, and custom filtering/shielding solutions to help customers pass emc compliance testing on the first attempt—delivering 30-50% cost and time savings while ensuring reliable operation of the finished electronic device.

---

EMC stands as a foundational engineering discipline that determines whether products reach the market successfully. From the early radio era’s interference problems to today’s 5G and EV powertrains, the core principles remain consistent: limit what your circuit emit, ensure immunity to what others emit, and verify compliance against applicable standards. With proactive design practices, appropriate test equipment, and expert guidance, achieving an EMC compliant product becomes a predictable engineering outcome rather than a last-minute scramble. If you’re developing electronic systems and need practical EMC solutions, DOREXS offers the integrated approach—from pre-compliance setups to design consulting—that transforms EMC challenges into first-time certification success.
