EMC Challenges in Battery Energy Storage

Overview: Why EMC is Critical for Modern BESS

Electromagnetic compatibility in battery energy storage systems has become one of the defining engineering challenges of the 2020s. As grid-connected BESS installations scale from kilowatts to hundreds of megawatts, the electromagnetic interference generated by high-power inverters, fast-switching semiconductors, and dense control electronics threatens to undermine the very reliability these systems promise. EMC ensures that devices can function in shared electromagnetic environments without causing or suffering unacceptable performance degradation—a critical requirement when batteries must respond to grid signals in milliseconds.

The numbers tell the story of why this matters now more than ever. The global BESS market has experienced growth exceeding 50% annually, with new installations surpassing 200 GWh of capacity in recent years. This multi-billion dollar industry is deploying systems at a pace that often outstrips careful EMC design, leading to costly compliance failures and field issues that delay grid connection by months.

Modern BESS architectures rely on wide-bandgap semiconductors like silicon carbide (SiC) and gallium nitride (GaN) that switch at frequencies of 100 kHz or higher. These devices deliver remarkable efficiency gains, but they also generate noise spectra that extend well into the MHz range—far beyond what traditional EMI mitigation techniques were designed to handle. The switching edges under 100 ns create steep dI/dt transients that couple into every conductor in the system.

This noise doesn’t stay contained. It affects grid stability by injecting harmonics onto power lines. It corrupts battery management system measurements, leading to incorrect state-of-charge estimates and potential safety incidents. It disrupts communication buses that carry protection commands. And it can cause regulatory compliance failures that halt projects in their tracks.

The stakes extend beyond technical performance. Poor EMC design can trigger thermal runaway detection failures, create false alarms that shut down revenue-generating assets, and inject harmonics that affect power quality for neighboring grid users. When a 100 MWh installation goes offline due to unexplained BMS faults, the financial impact runs into hundreds of thousands of dollars per day.

DOREXS has positioned itself as a specialist provider of EMI power filter solutions specifically engineered for the demanding requirements of energy storage applications. Their high-current, high-voltage filter products help BESS manufacturers and system integrators achieve EMC compliance while maintaining the efficiency and compact footprint that modern installations demand.

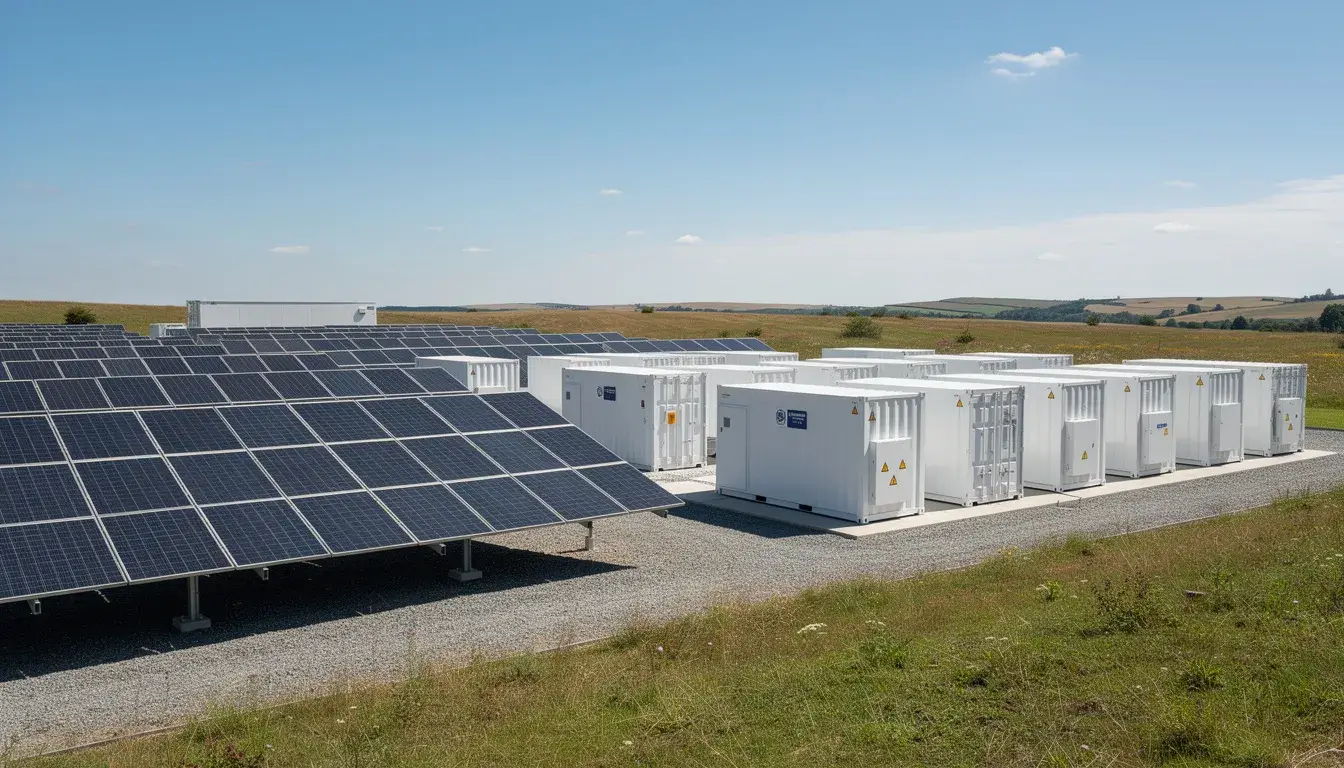

How Battery Energy Storage Fits into Smart Grids

Smart grids have fundamentally transformed how electrical energy flows from generation to consumption. Since around 2015, utilities and grid operators have increasingly integrated distributed energy resources—rooftop solar installations, onshore wind farms, and commercial photovoltaic arrays—into networks that once supported only centralized generation. This shift demands energy storage as the balancing mechanism that smooths the inherent variability of renewable sources.

Battery energy storage systems serve distinctly different roles depending on their scale. Residential backup systems in the 5–20 kWh range provide homeowners with resilience during outages and the ability to time-shift solar generation. Commercial and industrial installations between 0.5 and 10 MWh enable peak shaving, demand charge reduction, and power factor correction for manufacturing facilities and data centers. Utility-scale projects exceeding 100 MWh—many commissioned since 2022—provide grid services including frequency regulation, spinning reserve, and black-start capability for regional transmission systems.

Each deployment level presents unique EMC environments and constraints. A residential battery system sits meters away from sensitive home electronics, televisions, and communication equipment where even minor conducted emissions can cause visible interference. Commercial installations share electrical infrastructure with production equipment, PLCs, and building automation systems that demand reliable operation despite nearby high-power switching. Utility-scale BESS often connects at medium voltage, with long cable runs between containerized battery racks and grid interconnection points that can act as efficient antennas.

The components within these systems each play a dual role as both EMI sources and potential victims. Power conversion systems including inverters and DC/DC converters generate the bulk of conducted and radiated emissions. Battery management systems with their precision analog front-ends are highly susceptible to noise on voltage and temperature sensing lines. Communication gateways using Ethernet, CAN bus, or RS485 must maintain reliable operation despite the hostile electromagnetic environment. Protection relays and contactors create additional transients while simultaneously requiring clean control signals for safe operation.

Understanding this integration context is essential for addressing EMC challenges effectively. A filter solution that works perfectly in a laboratory may fail when installed in a 40-foot container with 50 meters of DC cable running to a transformer yard.

Key EMC and EMI Challenges in BESS Architectures

As battery energy storage systems scale from tens of kilowatts to hundreds of megawatts, conducted and radiated EMI issues grow non-linearly. The physics of electromagnetic coupling means that doubling system power can increase emissions by far more than 6 dB, particularly when layout constraints force compromises in cable routing and grounding.

High-frequency switching noise from power inverters creates the foundation of most BESS EMI problems. Typical inverter switching frequencies of 10–50 kHz generate harmonics that extend well into the MHz range. These harmonics couple onto AC power lines through parasitic capacitances between semiconductor packages and heatsinks, and they propagate along DC busbars through the stray inductances inherent in any physical conductor. Pre-mitigation measurements commonly show emissions exceeding CISPR Class A limits by 20–40 dB—a gap that cannot be closed with minor tweaks.

Long cable runs between system components create particularly severe challenges in containerized BESS installations. A typical utility-scale system might have 30–50 meters of DC cable between battery racks and the power conversion system, plus additional runs to medium-voltage transformers. These cables act as antennas, with their effective radiating length determined by the wavelengths of the noise frequencies present. At 1 MHz, a 50-meter cable represents roughly one-sixth of a wavelength—an efficient radiator.

Common mode noise dominates many BESS emission profiles. In a 1000–1500 VDC system, parasitic capacitances in the range of 1–10 pF between conductors and chassis ground enable common-mode currents of 1–10 mA at MHz frequencies. These currents flow through ground paths that were never designed to carry high-frequency signals, creating voltage drops that appear as noise on every grounded reference in the system. Differential-mode noise, while typically lower in amplitude, can still corrupt the accuracy of current sensors and create ripple that degrades battery lifespan.

The susceptibility of BMS measurement lines and communication buses adds another dimension to these challenges. Voltage sensing circuits that must resolve millivolt differences between cell potentials can see errors of 5–10% when common-mode transients couple onto their inputs. CAN bus and RS485 communication suffer bit errors that force retransmissions, adding latency to protection commands at exactly the moments when speed matters most.

Field symptoms observed since 2020 in commissioned BESS installations include nuisance breaker trips triggered by high-frequency noise on protective relay inputs, unexplained BMS faults that clear on reset but recur unpredictably, flickering lights on nearby distribution feeders, and corrupted SCADA data that makes remote monitoring unreliable. These issues often appear only under specific operating conditions—high state-of-charge, maximum power output, or particular grid voltage combinations—making diagnosis frustratingly difficult.

EMC Risks for BMS and Control Electronics

The battery management system sits at the heart of every BESS installation, continuously monitoring cell voltages, pack currents, and temperatures to maintain safety and optimize performance. In multi-MWh storage projects, BMS architectures typically include dozens of slave modules distributed across battery racks, communicating with master controllers that execute protection logic and interface with site-level energy management systems.

Conducted EMI on power rails feeding BMS electronics can directly corrupt the analog-to-digital conversion process. Cell voltage measurements that must resolve 1–5 mV differences for accurate state-of-charge estimation become unreliable when noise couples through power supply rails or ground references. A 10 mV error on a 3.7 V lithium cell represents a 0.3% voltage error, but this can translate to 5–15% inaccuracy in state-of-charge calculations. Over the capacity of a 1 MWh pack, such errors mean potentially misestimating available energy by 50–150 kWh.

Radiated EMI and ground bounce create different failure modes in microcontroller and FPGA-based BMS components. High dI/dt transients from nearby busbars and contactor coils can induce sufficient noise on reset lines or clock signals to cause sporadic processor resets. These events may occur only a few times per month, making root cause analysis extremely difficult. Firmware lockups in BMS slaves can disconnect entire battery strings from monitoring, creating blind spots in the protection system.

Communication reliability between BMS components suffers when EMI corrupts data frames. CAN bus networks, while designed with differential signaling for noise rejection, can still experience frame errors when common-mode noise exceeds the common-mode rejection capability of transceivers. RS485 links face similar challenges. Each corrupted frame requires retransmission, adding latency to the control loop. When protection commands must propagate from a master controller through multiple slaves to reach a contactor, even 10–20 ms of additional delay can matter during a fault event.

The safety implications of these EMI-induced errors extend to critical parameters that define safe operating boundaries. Delayed detection of over-temperature conditions can allow cells to approach thermal runaway before protective action initiates. False over-voltage alarms trigger unnecessary shutdowns that reduce system availability and revenue. Missed isolation faults in systems operating above 500 kWh can create shock hazards for maintenance personnel.

Poor enclosure design magnifies all of these susceptibility issues. Control cabinets that share compartments with high-current busbars expose sensitive circuits to intense fields. PCB layouts without proper ground planes allow common-mode noise to develop between circuit references. Grounding schemes that create loops or long return paths turn control wiring into pickup antennas for every transient in the system.

Compliance and Regulatory Landscape for BESS EMC

Grid-connected battery energy storage systems must satisfy both grid interconnection codes and product EMC standards before achieving commercial operation. This dual requirement creates a complex compliance landscape that varies by region, voltage class, and application type.

Key international EMC standards form the foundation of BESS certification. IEC 61000-6-2 specifies immunity requirements for industrial environments, establishing the minimum disturbance levels that equipment must withstand without malfunction. IEC 61000-6-4 defines emission limits for industrial equipment, setting boundaries on conducted emissions (typically 150 kHz to 30 MHz) and radiated emissions (30 MHz to 1 GHz). The IEC 61000-4-xx series provides detailed test procedures for specific phenomena including electrostatic discharge, electrical fast transients, surge, and conducted RF immunity. European installations must additionally meet harmonized EN standards, while North American deployments reference FCC Part 15 for radiated emissions.

Large utility-scale BESS installations commissioned since 2021 typically undergo comprehensive type testing at accredited laboratories. These tests verify that emissions remain within acceptable levels across the full frequency range, with particular attention to the 150 kHz to 30 MHz conducted emission band where inverter harmonics concentrate. Some grid operators now require testing beyond 30 MHz to address concerns about interference with wireless communication systems operating in VHF and UHF bands.

National interconnection standards drive EMC requirements indirectly through power quality constraints. IEEE 1547-2020 for distributed energy resources in North America specifies harmonic current limits, DC injection limits, and voltage fluctuation boundaries that effectively constrain the low-frequency portion of inverter emissions. These requirements apply at the point of common coupling, meaning that the combined effect of all system components—including filters—determines compliance.

System-level demonstration poses particular challenges for BESS manufacturers. Component-level EMC certification, while necessary, does not guarantee system compliance. Real grid impedance differs from laboratory artificial networks. Cable routing in field installations rarely matches test configurations. Grounding practices vary between sites. These factors can shift emission levels by 3–6 dB in either direction, potentially turning a comfortable compliance margin into a failure.

The project timeline implications of EMC compliance failures are severe. Issues discovered during factory acceptance testing or site acceptance testing can delay grid connection by 6–9 months while engineers characterize noise sources, design mitigation measures, and retest. Retrofit costs including expedited filter procurement, installation labor, and retesting fees can easily exceed $100,000 per cycle—making early EMC design investment extremely cost-effective by comparison.

Design Strategies to Mitigate EMC Problems in BESS

Effective EMC mitigation in battery energy storage requires a coordinated approach across multiple design domains. Topology, layout, shielding, filtering, and grounding must work together as an integrated system rather than independent countermeasures. The most successful BESS designs treat EMC as a fundamental architecture decision rather than a problem to solve after the fact.

System topology choices establish the foundation for EMC performance. Placing inverters and EMI filters as close as possible to cable entry points minimizes the length of unfiltered conductors that can radiate. Keeping power cables and signal cables on opposite sides of enclosures reduces capacitive and inductive coupling. Avoiding parallel runs between high-current DC busbars and sensitive communication wiring prevents the magnetic field coupling that creates common-mode noise on data lines. These layout decisions must happen early in the design process, as retrofitting topology changes after mechanical designs are frozen is extremely expensive.

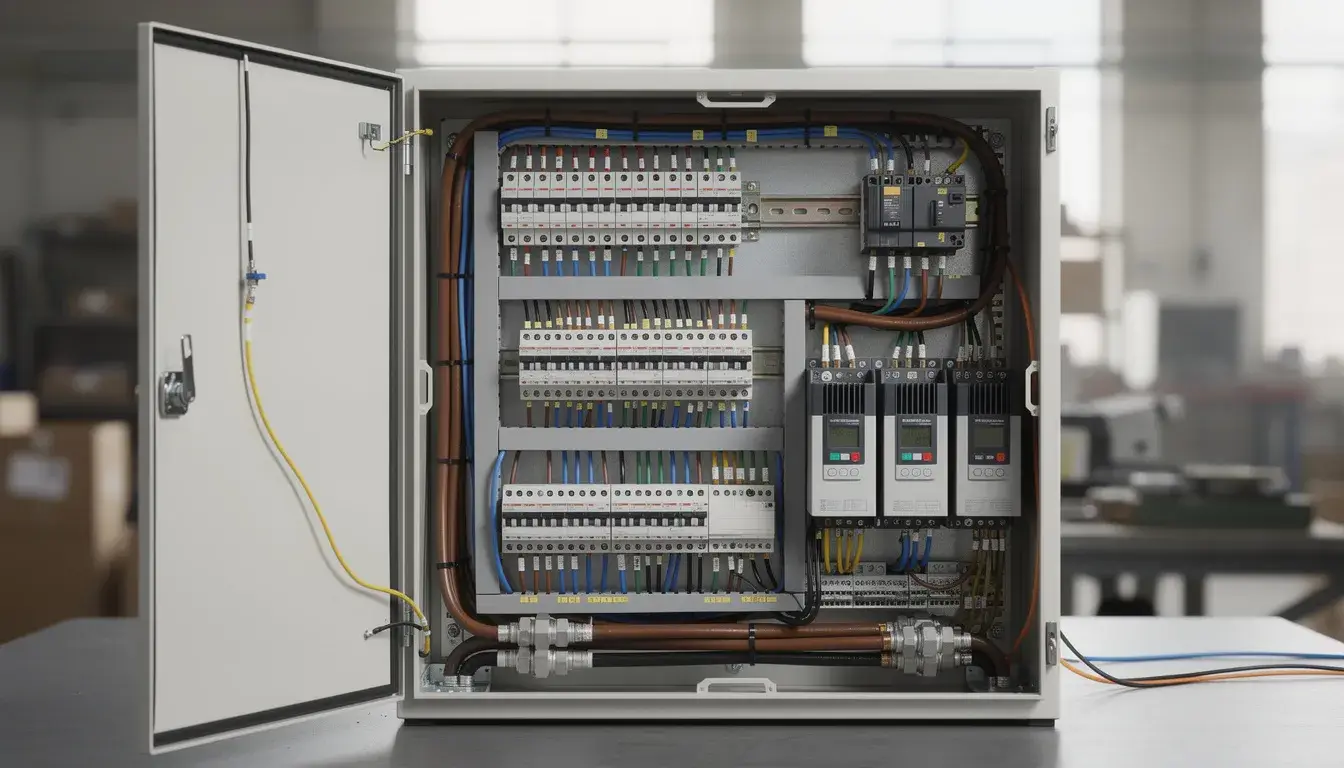

Enclosure and cabinet design directly affects both radiated emission control and immunity to external fields. Conductive enclosure panels, properly bonded at multiple points along seams, create effective shields when door edges include RF gaskets or overlapping metal flanges. Separating the power compartment from control sections with internal shield walls reduces the field intensity that sensitive electronics must tolerate. For outdoor BESS containers, maintaining conductive continuity despite paint, corrosion, and thermal expansion requires careful attention to bonding hardware and surface preparation.

At the PCB level, BMS and controller designs benefit enormously from solid ground planes that provide low-impedance return paths for high-frequency currents. Controlled impedance routing for high-speed signals prevents reflections that can radiate. Isolation barriers between high-voltage sensing inputs (which may see common-mode voltages of 1000 VDC or more) and low-voltage logic domains block the conducted paths that would otherwise couple noise directly into processor circuits.

Grounding and bonding strategies require particular care in BESS installations. The choice between single-point and multi-point grounding depends on frequency range and physical dimensions. For containers and racks where dimensions approach significant fractions of a wavelength at EMI frequencies, multi-point bonding with short, wide straps generally outperforms single-point schemes. Every cable gland, door hinge, and mounting bracket represents a potential bonding failure point that must be addressed.

EMI power filtering serves as the central active countermeasure in most BESS designs. Line filters on the AC grid side attenuate conducted emissions before they reach the point of common coupling. DC filters on the battery side reduce ripple and noise that could affect battery performance and lifespan. Dedicated filters for auxiliary power supplies feeding BMS, PLCs, and communication equipment prevent noise from propagating through these secondary paths. Proper filter selection and installation can provide 40–60 dB of attenuation, often making the difference between compliance failure and comfortable margins.

Choosing and Applying EMI Power Filters in BESS

Filter selection for battery energy storage applications requires careful consideration of operating conditions rather than simple reliance on catalog ratings. A filter specified for 480 VAC at 25°C may not perform adequately at 520 VAC and 55°C—conditions routinely encountered in containerized BESS installations. Understanding these dependencies is essential for reliable operation.

Key selection criteria span electrical, thermal, and mechanical domains:

Parameter	Typical BESS Range	Design Consideration
AC Voltage	400–800 VAC	Include 10% overvoltage margin
DC Voltage	800–1500 VDC	Account for regenerative peaks
Continuous Current	100–3500 A	Size for worst-case loading
Ambient Temperature	-20 to 55°C	Apply derating above 40°C
Switching Frequency	10–100 kHz	Match filter corner frequency

Common-mode and differential-mode attenuation both matter for high-power inverters. Common-mode noise typically dominates conducted emissions, driven by parasitic capacitances between switching devices and grounded heatsinks. However, differential-mode noise affects power quality metrics including THD and ripple. Filters must provide balanced attenuation across both modes—DOREXS designs specifically address this requirement in BESS applications, achieving 60 dB combined suppression without excessive size or weight penalties.

AC-side filter placement belongs between the inverter output and the grid-side transformer. This location captures emissions before they can propagate onto utility feeders while remaining accessible for maintenance. Leakage current specifications require attention in systems with ground fault protection—excessive filter capacitance to ground can trip sensitive RCD or GFCI devices. For 400/480 VAC systems, filter leakage currents typically must remain below 3.5 mA per phase to avoid nuisance tripping.

DC-side filtering presents unique challenges. High bus voltages of 1000–1500 VDC require filter capacitors and inductors rated for these potentials with appropriate creepage and clearance distances. Large fault currents during battery short circuits must not damage filter components. The filter must minimize its own losses, as even a 0.5% efficiency penalty on a 1 MW system represents 5 kW of continuous heat generation requiring removal from the enclosure.

Consider a practical example: a 1 MW / 1000 VDC BESS skid requires DC filtering to meet IEC emission limits. The inverter switches at 20 kHz, generating harmonics through 1 MHz that couple to the battery cables. A properly sized filter must handle 1200 A continuous current, withstand 1500 VDC transients, fit within the available 0.1 cubic meter of enclosure space, and provide 40 dB common-mode attenuation from 150 kHz to 30 MHz. Meeting all these requirements simultaneously demands purpose-built solutions rather than adapted industrial filters.

Mechanical and thermal aspects often determine real-world reliability. Busbar terminations handle vibration better than cable lugs in mobile or seismically active installations. Clearance and creepage distances per IEC 60664 must account for pollution degree 3 in outdoor containers. Temperature derating—typically 2% per degree above 40°C—means a filter rated at 500 A may only safely handle 400 A at 55°C ambient.

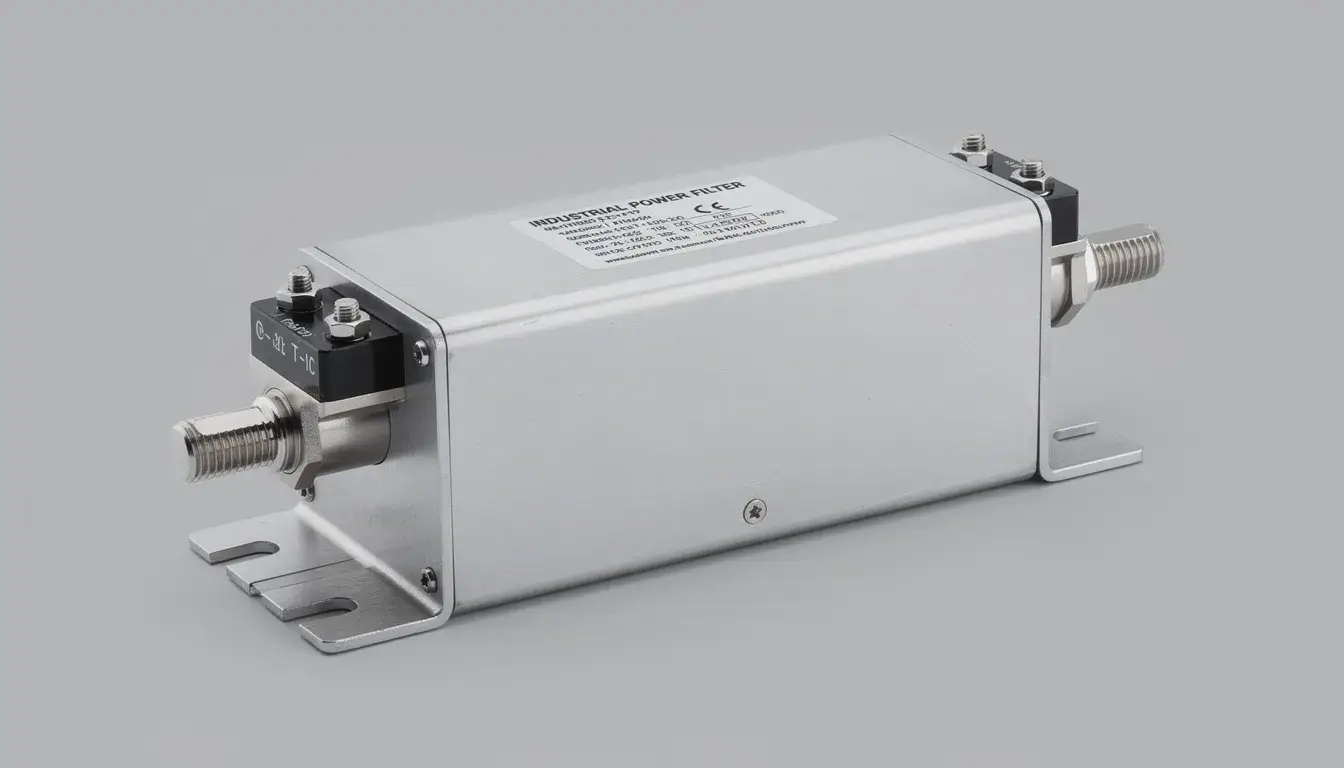

DOREXS EMI Power Filter Solutions for Battery Energy Storage

DOREXS has developed a comprehensive range of EMI power filters specifically engineered for the demanding requirements of high-power converters, renewable energy installations, and battery energy storage projects. Their product portfolio addresses the full range of filtering needs in modern BESS architectures, from grid-side AC filtering to battery-side DC filtering and auxiliary supply protection.

For three-phase AC applications common in commercial and utility BESS, DOREXS offers filters rated for 380–480 VAC systems carrying currents from tens of amperes to several thousand amperes. These filters provide balanced common-mode and differential-mode attenuation across the conducted emission frequency range, helping system integrators meet IEC 61000-6-4 emission limits at the point of common coupling. Low insertion loss at the fundamental frequency minimizes efficiency impact on systems where every tenth of a percent matters for project economics.

High-voltage DC filters in the DOREXS portfolio address the 800–1500 VDC battery strings that characterize modern lithium-ion BESS installations. These filters must combine high voltage withstand capability with the current handling and attenuation performance that makes them effective. DOREXS designs accommodate the fault current requirements, thermal constraints, and space limitations of containerized battery systems while providing the noise reduction necessary for reliable BMS operation.

For the auxiliary power supplies that feed BMS controllers, PLCs, and communication equipment, compact filters for 24 VDC or 48 VDC systems prevent high-frequency noise from entering through these secondary paths. These smaller filters often make the difference between intermittent communication faults and reliable operation, as auxiliary power rails can otherwise act as coupling paths for inverter noise into sensitive electronics.

Technical characteristics that particularly benefit BESS applications include high common-mode attenuation extending to 30 MHz, addressing the full conducted emission frequency range. Low insertion loss at power frequencies maintains system efficiency where every fraction of a percent affects annual revenue. High leakage current capability, where system grounding permits, enables more aggressive filter designs. Robust insulation systems rated for outdoor container environments ensure long-term reliability in the temperature range from -40°C to 85°C that BESS installations experience.

Typical installation locations in a standard 20-foot or 40-foot BESS container include the grid connection cabinet where AC power enters and inverter output filters insert, the interface between the power conversion system and step-up transformer, and the DC combiner outputs on the battery side where string-level filtering may be required. DOREXS application engineering support helps OEMs and EPCs determine optimal filter locations based on single-line diagram review and noise characterization data.

Beyond product supply, DOREXS offers application engineering collaboration that reviews system architectures, recommends appropriate filter models, and advises on grounding and wiring practices that maximize EMC margins. This support proves particularly valuable when scaling from pilot projects to multi-site deployments, where lessons learned can be systematically applied across a fleet of installations.

Case-Style Examples of EMC Issues and Mitigations in BESS

Real-world BESS deployments between 2020 and 2024 have generated valuable lessons about EMC challenges and their solutions. The following anonymized scenarios illustrate common patterns and effective mitigation approaches.

Utility-Scale BESS: Nuisance Tripping and SCADA Errors

A 5 MW / 20 MWh utility-scale BESS at an industrial park experienced repeated nuisance tripping of protection devices during high-power operation. Site personnel also reported intermittent SCADA data corruption that made remote monitoring unreliable. Initial troubleshooting focused on protection relay settings, but adjustments failed to resolve the issue.

Spectrum analysis at the AC switchgear revealed conducted emissions exceeding Class A limits by 25 dB in the 500 kHz to 5 MHz range. Time-domain measurements showed correlation between emission peaks and inverter switching events. The noise coupled onto protection relay control inputs, triggering false overcurrent indications.

The solution combined DOREXS three-phase AC EMI filters rated for 480 VAC and 300 A installed between each inverter output and the main switchgear, along with improved cable segregation that routed power and control cables on opposite sides of the container. Post-installation measurements confirmed emissions reduced by 45 dB, and the facility achieved six months of operation without a single nuisance trip.

Commercial Rooftop Solar-Plus-Storage: BMS Communication Failures

A 500 kW / 1 MWh solar-plus-storage system at a data center backup facility experienced periodic BMS communication errors that caused battery string disconnections. The errors occurred unpredictably but more frequently during cloudy weather when the inverter responded to rapid solar irradiance changes.

Investigation traced the problem to radiated noise from DC cables routed within 10 cm of the CAN bus wiring connecting BMS slaves. The rapid dI/dt during cloud transients created magnetic field coupling that exceeded the common-mode rejection capability of the CAN transceivers.

Mitigation included rerouting DC cables to increase separation to 30 cm, adding shielded cable for the CAN bus with shields bonded at both ends, and installing auxiliary supply filters on the 24 VDC rails feeding BMS electronics. DOREXS compact DC filters prevented noise that had been entering through the power supply path. Communication reliability improved from 94% to 99.97%, eliminating the nuisance string disconnections.

Residential Community Battery: Early-Stage EMC Design

A 150 kWh community battery installation in a residential neighborhood benefited from EMC consideration during initial design rather than as a retrofit. The project team recognized that proximity to homes meant Class B residential emission limits would apply and that any interference with household electronics would generate complaints.

Design measures included selecting an inverter with integral EMI filtering, adding external DOREXS AC filters at the grid connection point, specifying shielded cables for all external runs, and implementing a single-point grounding scheme with low-impedance bonds. Pre-commissioning EMC testing confirmed 8 dB margin below Class B limits.

The system has operated for 18 months without a single interference complaint from neighboring residents, validating the early investment in EMC design.

Best Practices Checklist for EMC-Robust BESS Design

System architects, power electronics engineers, and product management professionals benefit from structured approaches to EMC throughout the BESS project lifecycle. The following practices, distilled from successful deployments, provide actionable guidance.

Early-Stage Design Actions

Incorporate EMC requirements into project specifications from the outset, including specific standards (IEC 61000-6-4, IEEE 1547) and margin targets (typically 6–10 dB below limits). Plan filter locations in single-line diagrams before mechanical layouts are frozen—retrofitting filter mounting space is expensive and often compromises performance. Budget for EMC testing in project timelines, allocating 2–4 weeks for pre-compliance testing and potential iteration before formal certification.

Integration-Phase Practices

Verify grounding and bonding schemes against design documentation, checking that all specified bond points are installed with low-impedance connections. Measure bond impedances with a milliohm meter to confirm performance. Separate power cable routes from signal cable routes by at least 30 cm where possible, using opposite sides of enclosures or cable trays with solid barriers. Confirm that BESS containers maintain conductive continuity between all panels and doors, with particular attention to painted surfaces and gasketed joints.

Testing Recommendations

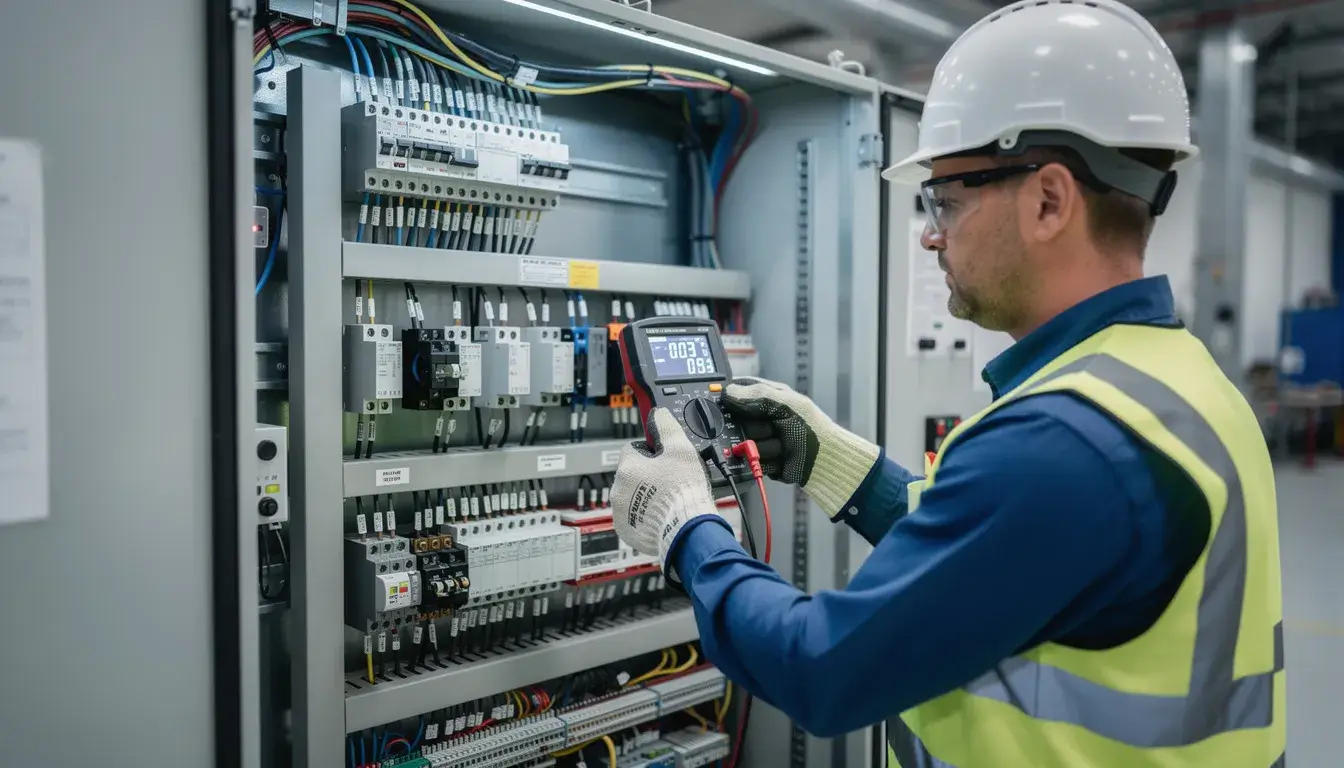

Perform pre-compliance emission scans on PCS cabinets before integration into containers—catching problems early reduces remediation cost by 10x or more. Run conducted and radiated emission measurements on a pilot container before committing to full series production, testing at multiple operating points including maximum power and rapid transients. Document EMC margins at each test point, creating a baseline for comparison during future modifications or upgrades.

Maintenance and Lifecycle Considerations

Periodically inspect filter connections and bonding points, particularly in outdoor installations where corrosion can degrade performance. Check for physical damage to filter housings and terminals that might indicate overheating. Monitor system logs for changes in communication error rates or unexplained protection events that might indicate developing EMC issues. After firmware upgrades or hardware modifications, consider spot-check EMC measurements to verify that margins remain acceptable.

Supplier Collaboration

Engage specialized suppliers such as DOREXS early in the design process, particularly when scaling from pilot projects to multi-site deployments. Application engineering support that reviews single-line diagrams and recommends filter models based on system-specific requirements can prevent costly iterations during commissioning. Leverage supplier experience across similar installations to incorporate lessons learned from other projects.

Conclusion: Building EMC into the Future of Energy Storage

Electromagnetic compatibility stands as a foundational requirement for safe, reliable, and grid-compliant battery energy storage systems as deployments accelerate through 2030 and beyond. The challenges are real—conducted and radiated emissions from high-power inverters, susceptibility of precision BMS electronics, and increasingly stringent regulatory requirements—but they are manageable with proper design attention.

The consequences of inadequate EMC design extend across technical, commercial, and safety domains. Compromised BMS measurements can lead to state-of-charge errors that affect both grid services and battery lifespan. Power quality issues at the point of common coupling can result in utility complaints and interconnection delays. In extreme cases, EMI-induced protection failures could contribute to safety incidents including thermal events. The retrofit costs, project delays, and reputational damage from EMC failures far exceed the investment required for proper upfront design.

A robust EMC strategy combines architectural decisions made early in the design process, careful component selection for both power electronics and control systems, and high-performance EMI power filters positioned at critical interfaces. DOREXS has established itself as a partner for BESS manufacturers and integrators seeking filter solutions that address both AC and DC paths with the voltage ratings, current handling, and attenuation performance that modern high-power systems demand.

As standards evolve and system voltages and power densities continue to increase, EMC challenges will intensify rather than diminish. Treating electromagnetic compatibility as a design requirement from project conception—not a late-stage problem to be solved during commissioning—represents the path to reliable, efficient, and profitable battery energy storage installations.
